My Part Number:

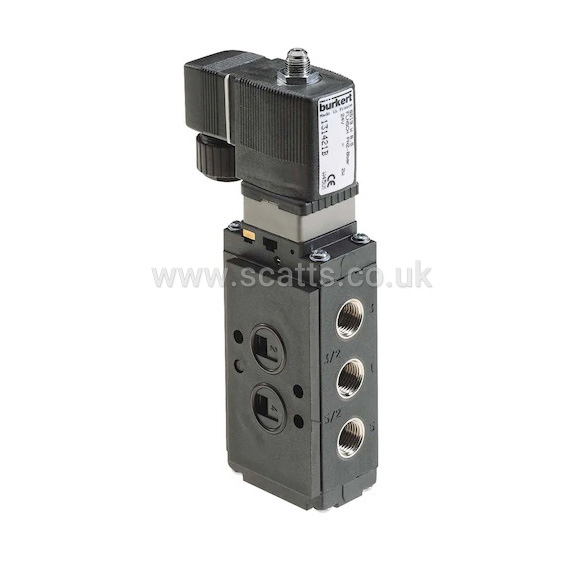

Part Number: 6519/131424
Manufacturer Code: 00131424
Multiples of: 1 | Minimum Order: 1
3/2 and 5/2-way-pneumatic valve 32 mm
High flow-rate capacity
Reduced power consumption
Single or manifold mounting
Standard-, Ex mb and Ex ia versions
Threaded port G 1/4” or NAMUR flange
The Type 6518 is a servo-assisted 3/2-way valve and the Type 6519 is a 5/2 or 5/3-way valve. Together, they form a product line. The valves can be used individually or in blocks. The valves work without a continuous air consumption and are used for the pneumatic control of double or single-acting actuators. A solenoid valve Type 6014 is used as a pilot. The use of high quality materials makes it possible to use these valves in the open air and under chemical atmospheres. The product line contains units with Ex-Approvals and NAMUR flange interface.
Brand |
BURKERT FLUID CONTROLS |
|
Electrical Connection |
DIN Plug |
|
Height |
177 mm |
|
Width |
53 mm |
|
Depth |
32 mm |
|
Weight |
460 g |
|
IP Rating |
IP65 |
|
Body Material |
Polyamide |
|
Approvals |
CE |
Supply Voltage |
24 V DC |
|
Output Type |
NAMUR |
|
Acceptable Media |
Inert Gas |
|
Wetted Parts |
Brass, Polyamide |
|
Seal Material |
NBR |
|
Orifice Size |
6 mm |
|
Process Connection |
G¼" Female |
|
Min OperatingPressure |
2 bar |
|
Max Operating Pressure |
8 bar |
|
Maximum Ambient Temperature |
55 °C |
|
Maximum Media Temperature |
50 °C |
|
£105.00
per 1 (ex. VAT)£126.00
per 1 (inc. VAT)
