ADE 4F ISO32X15 GLAND

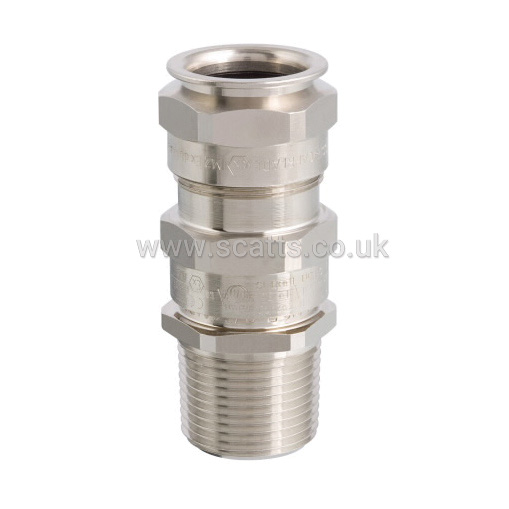

Eaton Capri ADE-4F Cable Gland for Hazardous Area

Sealing Type: Silicone
Connector Type: Straight
Type of Sealing: Sealing ring
Gland Type: Armoured
Protection, Proofing And Resistance: Shock Resistant
Nominal Thread Size Metric/PG: 32
Gland Size: 8
Material Quality: Brass
For EX-Zone Gas: 1, 2
Version: Explosion - Tested
Pitch Thread: 1.5 mm
For EX-Zone Dust: 21, 22
Working Temperature – Min: -60 °C
Suitable for Cable Diameter – Min: 18 mm
Outer Sheath (Min/Max): 18-27.5
Degree of Protection (IP): IP68
Cable Sealing Range: 2 (M)
Thread Size: M32
Colour: Natural colour
Material: Metal, Nickel plated brass
Lamp Type Included: Halogen Free
Working Temperature – Max: 140 °C
Protection Type: Flameproof and increased safety
Suitable for Cable Diameter – Max: 27.5 mm
Hexagon Angular Dimension: 45.1 mm
Surface Protection: Nickel-plated
Model: Straight
Thread Length: 15 mm
Thread Type: Metric
Wrench Width: 41 mm


• Specifically formulated elastomer for IP sealing on outer sheath of cable.
• Universal clamping design for earthing and bonding of armour shield.
Provides mechanical strength and is suitable for all armour shield types, with no requirement to reverse components that may introduce risk of incorrect installation.
• Specifically formulated elastomer for flame path sealing on inner sheath of the cable.
• Suitable for lead sheath cable with installation of simple washer.
• Additional external cable clamping for strain relief (optional).
