My Part Number:
Part Number: IS-D105/RED
Manufacturer Code: IS-D105-R
Multiples of: 1 | Minimum Order: 1

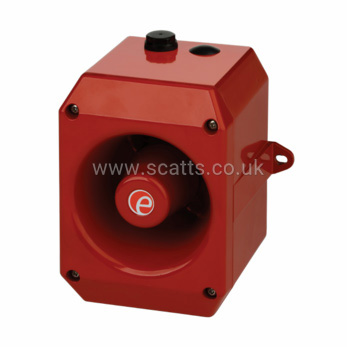

IS-D105 Alarm Sounder - Red, 105 DB
There is a choice of 49 alarm tones with 2 remotely selectable alarm stages. The enclosure is marine grade aluminium with a phosphate and powder coat finish for durability in the harshest of environments.
The IS-D105 unit is an intrinsically safe field mounting alarm horn with ATEX & IECEx approval which provides a loud audible signal.
Brand |
E2S |
|
Height |
180 mm |
|
Width |
130 mm |
|
Depth |
125 mm |
|
Weight |
1.6 kg |
|
IP Rating |
IP66 |
|
Body Material |
Marine Grade Aluminium |
|
Minimum Operating Temperature |
-40 °C |
|
Maximum Operating Temperature |
60 °C |
ATEX Approval - Gas |
Ex ia IIC T4 Ga |
|
Hazadrous Area Certification |
1, 2 |
|
Approvals |
ATEX, IECEx |
Additional Information |
Exia Parameter I: 93 mA, Exia Parameter P: 660 mW, Exia Parameter U: 28 V DC, Suitable Barrier: KFD0-SD2-Ex1.1045 |
|
ATEX Certificate Number |
IECEx SIR 04.0038X, SIRA 04ATEX2301X |
|
Cable Entry Method |
Direct |
|
Number Of Terminals |
4 |
|
Power Consumption |
25 mA |
|
Voltage Rating |
24 V DC |
|
Colour |
Red |
|
Cable Entries |
2 x M20 |
|
Nominal Output |
105 dB |
|
Number Of Stages |
3 |
|
Maximum Conductor Size |
2.5 mm² |
|
£365.92
per 1 (ex. VAT)£439.10
per 1 (inc. VAT)
