My Part Number:

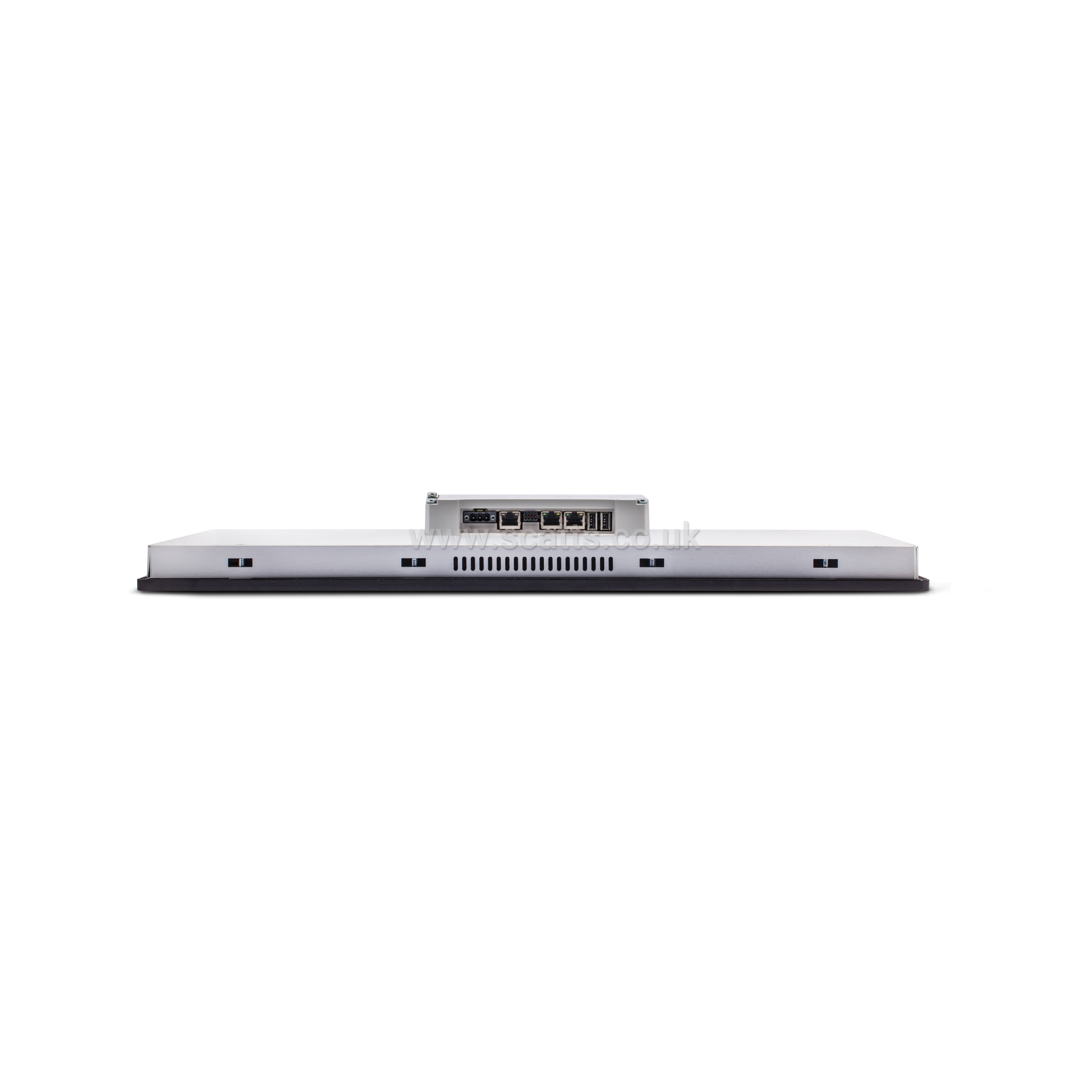

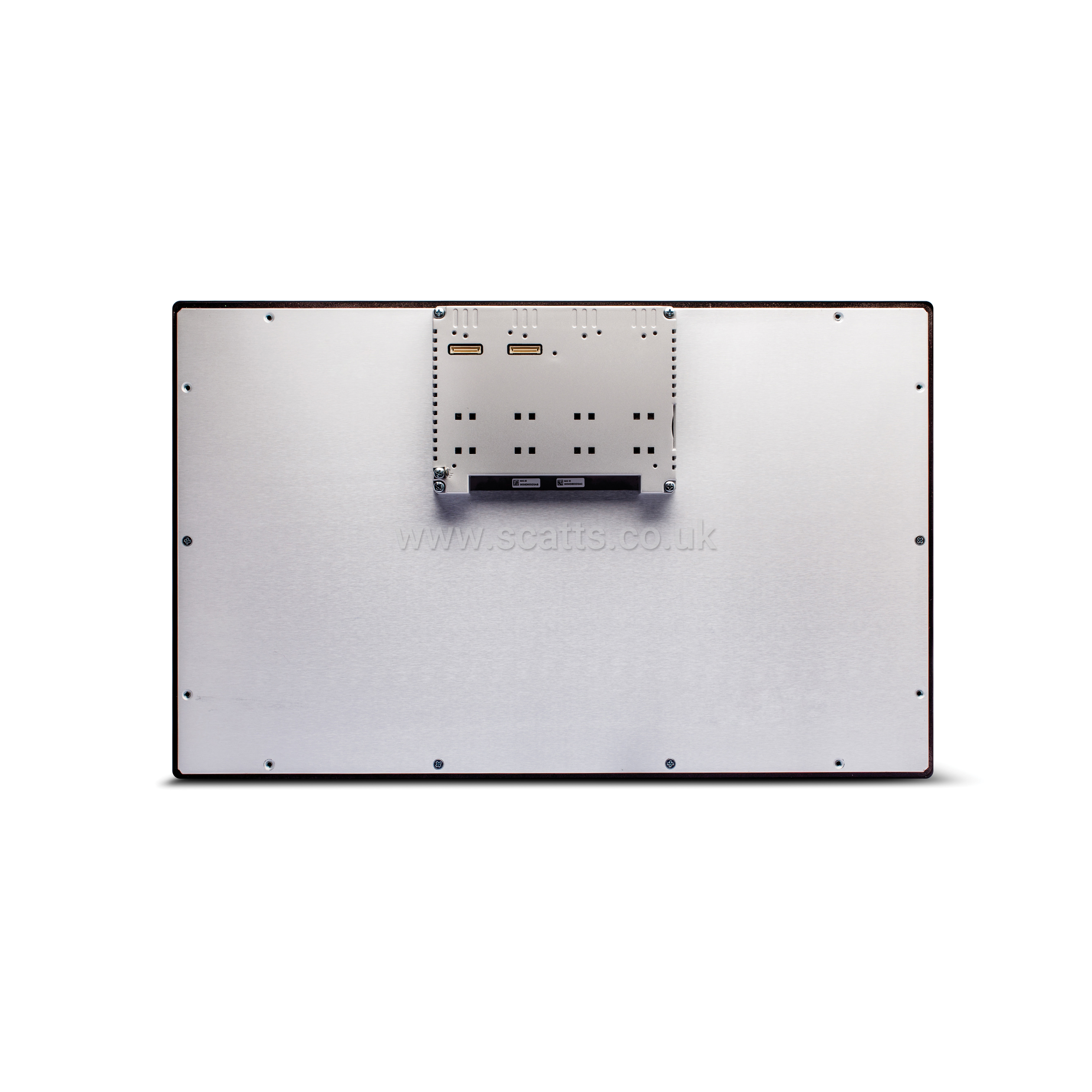

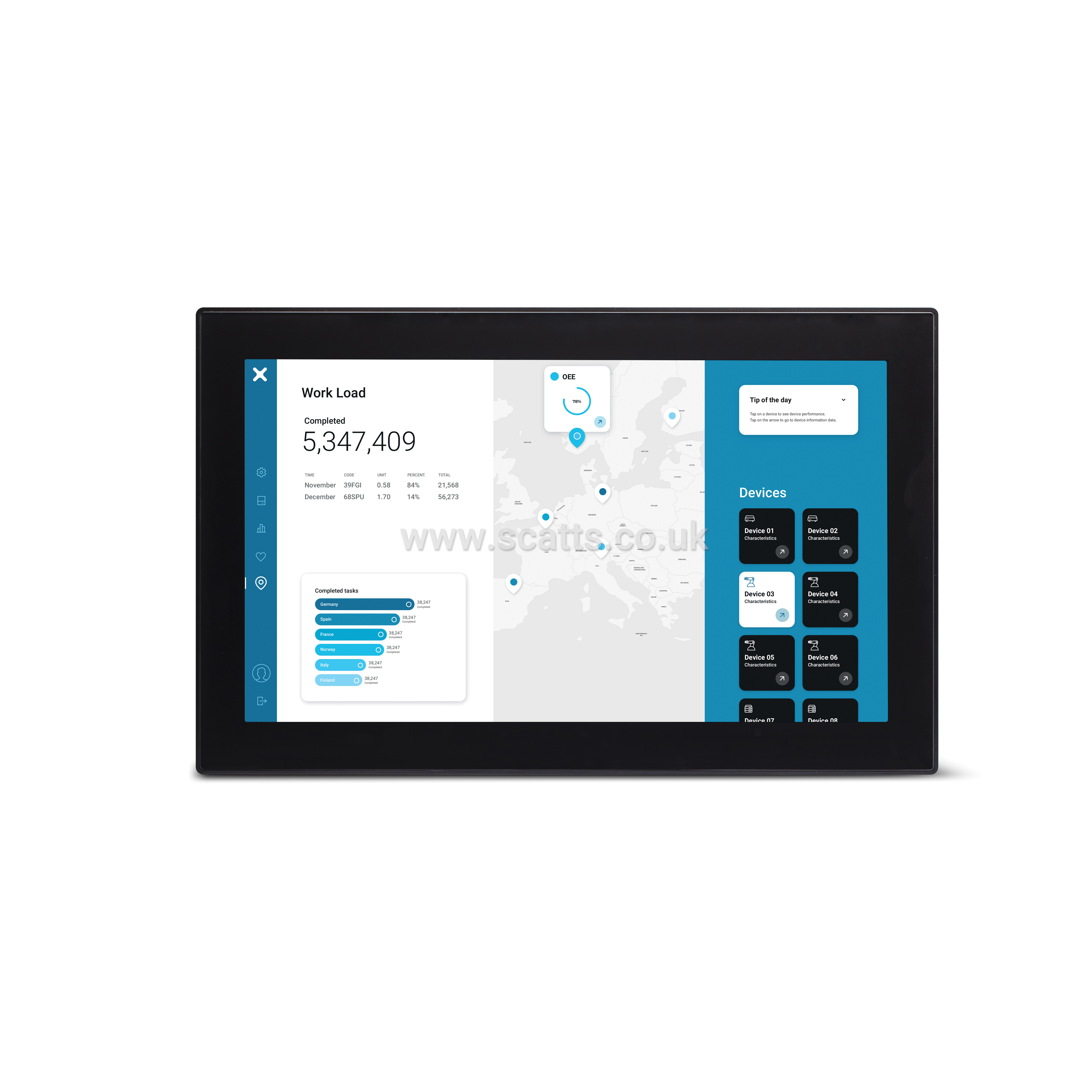

Part Number: EX721M-U5P1
Manufacturer Code: +EX721MU5P1
Multiples of: 1 | Minimum Order: 1
eX700M | Powerful Multi-purpose HMIs
The eX721 is an IoT controller with a large screen that is scratch, UV and chemical resistant, and has many important certifications that make it possible for applications on the factory floor and in harsh environments.
A powerful 64-bit quad core CPU that ensures JMobile applications are running in their optimal environment for the highest performance.
It offers ultra-high performance, high-resolution multitouch PCAP glass display, powerful integrated PLC with all major protocols, and optimised hardware and software for maximum application speed.
• 21.5” TFT Projected capacitive touchscreen. True glass design.
• Multitouch operation
• 64-bit quad core CPU
• Operating Temperature -20°C to +60°C
• System and Project Rapid Boot-Up
• CODESYS V3 with Ethernet I/O Stacks
• Resistant to Scratches, UV and Chemicals
• Network Separation possibile via Up to 3 Ethernet
• Networks with different IP addresses
• Plug in Modules for System Expansion
Brand |
EXOR INTERNATIONAL |
|
Colour Depth |
16 Million |
|
CPU |
64-bit Quad Core - 1.6 GHz |
|
Operating System |
Linux |
|
RAM |
2 GB |
|
Screen Brightness |
300 cd/m² typical |
|
Storage |
8 GB |
|
Mounting Style |
Panel Mount |
|
Application |
Indoor |
|
Screen Size |
21" (inches) |
|
Resolution |
1920 x 1080 |
|
Display Type |
Capacitive |
|
Optional Features |
CODESYS |
|
Connectivity |
Ethernet Port x 3, Expansion Modules x 2, SD Card, Serial Port x 1, USB Port x 2 |
|
Electrical Connection |
24 V DC Power Connector |
|
Height |
347 mm |
|
Width |
552 mm |
|
Depth |
56+8 mm |
|
Weight |
6.1 kg |
|
IP Rating |
IP66 |
|
Body Material |
Aluminium |
|
Minimum Operating Temperature |
-20 °C |
|
Maximum Operating Temperature |
60 °C |
Hazardous Area Certification |
Zone 2, Zone 22 |
|
Approvals |
NEC, CE, IECEx, UL - Canada & US, RCM, DNV |
£3,030.39
per 1 (ex. VAT)£3,636.47
per 1 (inc. VAT)
