LBK 3D SAFETY RADAR SENSOR, 24 GHZ PL D, SIL 2

The World’s first SIL 2 / PL d certified volumetric radar safety system for the protection of operators in industrial safety applications.

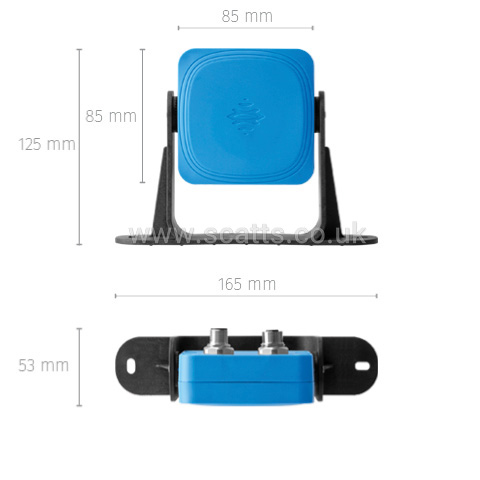

The LBK-S01 sensor is a smart FMCW (Frequency Modulated Continuous Wave) radar device based on proprietary Inxpect detection algorithms. The sensor sends 24 GHz radio waves and recovers motion information, analyzing the returned signals reflected by both static and moving objects in the operative range. The sensors perform the following primary functions:

• Motion and scenario analysis.
• Communication via CAN bus to the controller of the motion detection signal.
• Fault reporting and communication of diagnostic information via CAN bus to the controller.


The Series System can detect the presence of operators in the dangerous area, preventing accidental restarts of the machinery.

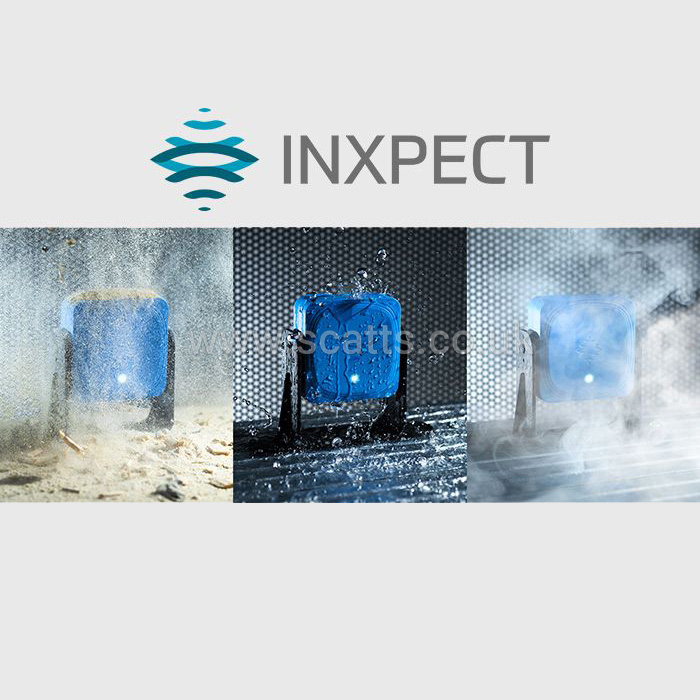

Optical devices often fail due to dust, smoke, water or waste generated by the production process. The Inxpect specialized radar technology is a sophisticated 24 GHz radar system that filters out those disturbances, reducing false alarms and increasing productivity.

The Series 100 System is composed of the control unit and up to six LBK-S01 sensors. The maximum depth of the monitored area is 4m (13ft).

Configuring the system is quick and easy, thanks to the user friendly Inxpect Safety Application. Guided validation procedures and the simple generation of the configuration report complete the installation.
