My Part Number:
Part Number: GECTT-2-6TB
Multiples of: 1 | Minimum Order: 1

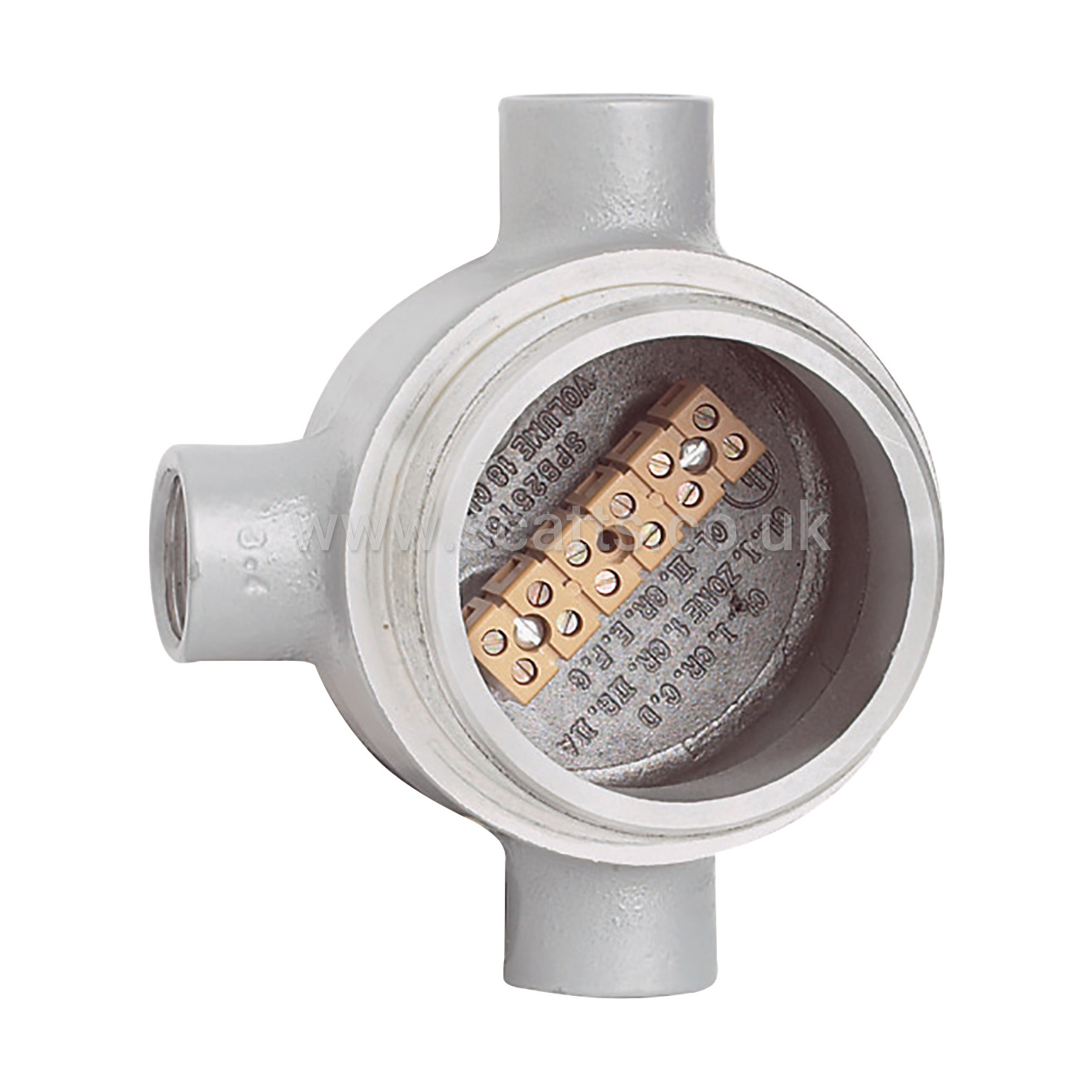

GEC-TB 2-3/4 ID RD Body, "T" 3/4" Hubs ,Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, Class I, II, III, BCDEFG, Type 4 IP66, Terminal Box
• Water shedding cover-suitable for wet locations when mounted in upright position.
• External cover threads on body protecting conductors from damage during pulling.
• No pinching of conductors during cover installation.
• Taper threaded hubs to provide ground continuity.
• Smooth integral hub bushing to protect conductor insulation when pulling.
• Weather-resistant finish.
• Green ground screw standard in all boxes.
• Weidmuller 6 point MK3 terminal block is mounted inside box on raised X type pad.
• Box and cover are made of copper free aluminum.
• Electrostatically applied gray powder coating.
• Cover o-ring Nitrile gasket.
Brand |
KILLARK |
|
£199.18
per 1 (ex. VAT)£239.02
per 1 (inc. VAT)
GEC-TB 2-3/4 ID RD Body, "T" 3/4" Hubs ,Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, Class I, II, III, BCDEFG, Type 4 IP66, Terminal Box
• Water shedding cover-suitable for wet locations when mounted in upright position.
• External cover threads on body protecting conductors from damage during pulling.
• No pinching of conductors during cover installation.
• Taper threaded hubs to provide ground continuity.
• Smooth integral hub bushing to protect conductor insulation when pulling.
• Weather-resistant finish.
• Green ground screw standard in all boxes.
• Weidmuller 6 point MK3 terminal block is mounted inside box on raised X type pad.
• Box and cover are made of copper free aluminum.
• Electrostatically applied gray powder coating.
• Cover o-ring Nitrile gasket.
Brand |
KILLARK |
|
