My Part Number:

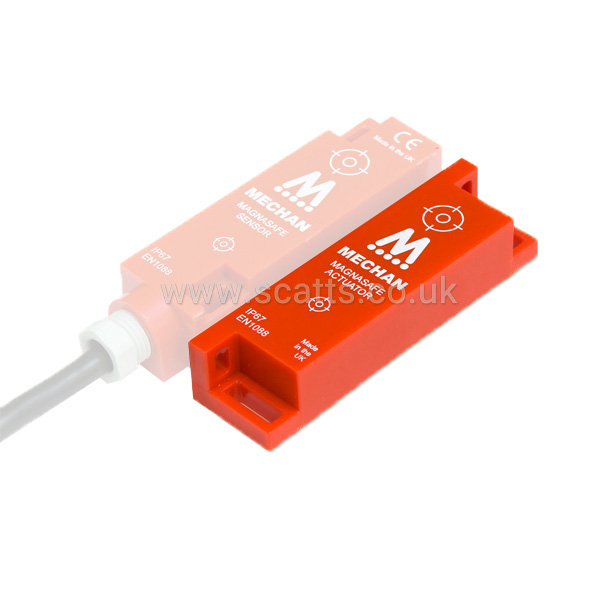

Part Number: MS1-ACT
Manufacturer Code: 350.099
Multiples of: 1 | Minimum Order: 1
*** ACTUATOR ONLY ***
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• Fully Sealed IP67
The Magnasafe MS1 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS1 safety switches are easy to install, tolerant to misalignment. With an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Accessory Type |
Spare Actuator |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
£26.70
per 1 (ex. VAT)£32.04
per 1 (inc. VAT)
*** ACTUATOR ONLY ***
• Max Contacts 2 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching
• Fully Sealed IP67
The Magnasafe MS1 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into red ABS housings, the MS1 safety switches are easy to install, tolerant to misalignment. With an 8 – 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Accessory Type |
Spare Actuator |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
