My Part Number:
Part Number: MS2-11-DC-03M
Manufacturer Code: 351.051
Multiples of: 1 | Minimum Order: 1
• Max Contacts 1 Safety 1 Auxiliary
• Contact Rating 2Amp 230VAC / 1Amp 24VDC
• 10mm Switching

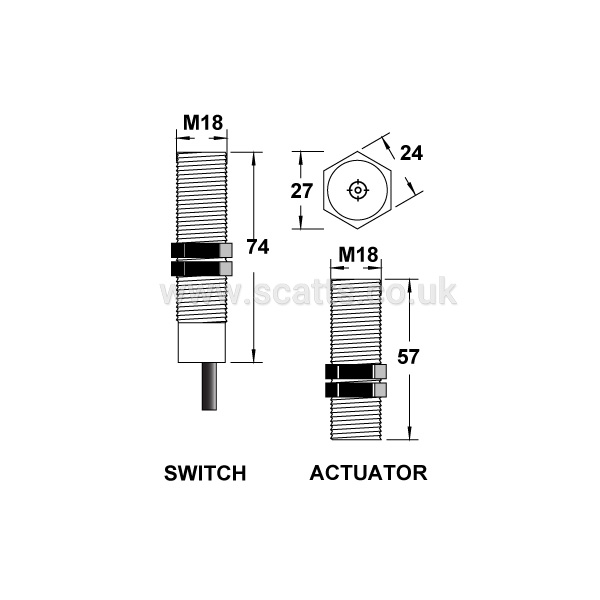

• M18 Housing
• Fully Sealed IP67
• Armoured Cable Option

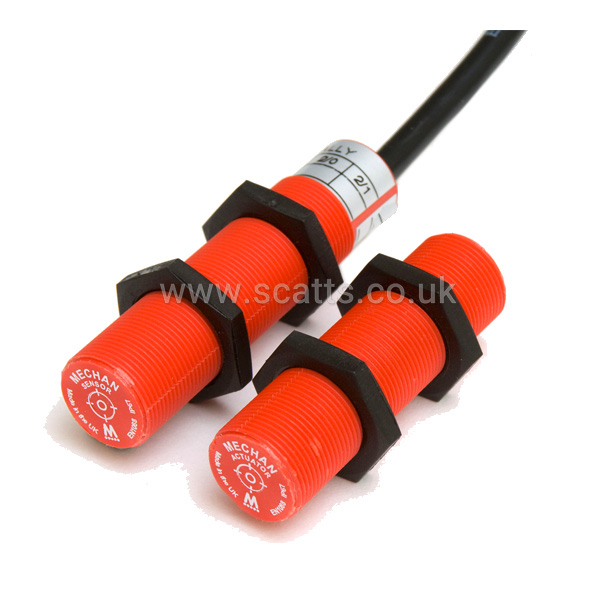

The Magnasafe MS2 are ‘barrel’ mounted, magnetically operated safety switches. Encapsulated into M18 dia. housings, these safety switches are easy to install, and adjust and are tolerant to misalignment. With an 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|
Electrical Connection |
Pre-Cabled |
|
Height |
74 mm |
|
IP Rating |
IP67 |
|
Body Material |
ABS |
|
Minimum Operating Temperature |
-10 °C |
|
Maximum Operating Temperature |
55 °C |
Approvals |
CE, UL - Canada & US |
Switching Voltage |
24 V DC |
|
Switching Current |
1 A |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
Safety Contacts |
1 N/C |
|
Auxiliary Contacts |
1 N/O |
|
Cable Length |
3 m |
|
Maximum Sensing Range |
30 mm |
|
Body Diameter |
18 mm |
|
£100.80
per 1 (ex. VAT)£120.96
per 1 (inc. VAT)
