My Part Number:
Part Number: MS21-ACT
Manufacturer Code: 359.099
Multiples of: 1 | Minimum Order: 1

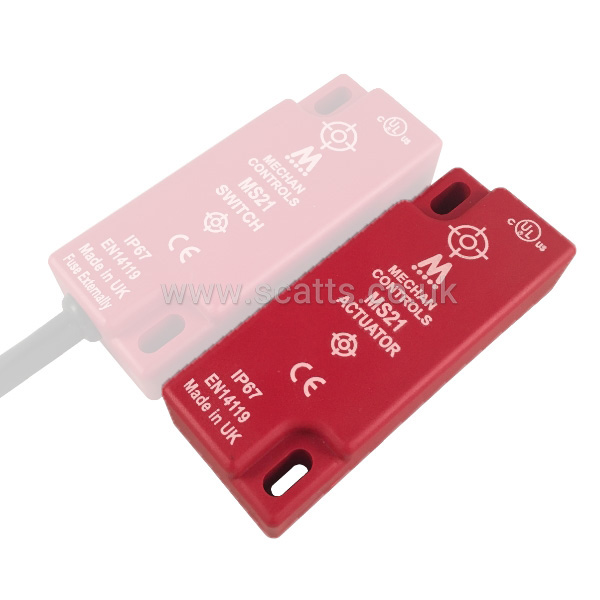

*** ACTUATOR ONLY ***
• Max contacts 2 safety 1 auxiliary
• Contact rating 2Amp 230VAC / 1Amp 24VDC
• 10mm switching
• ABS housing, fully sealed IP67
The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. Easy to install, tolerant to misalignment ,the non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.
Brand |
MECHAN CONTROLS |
|

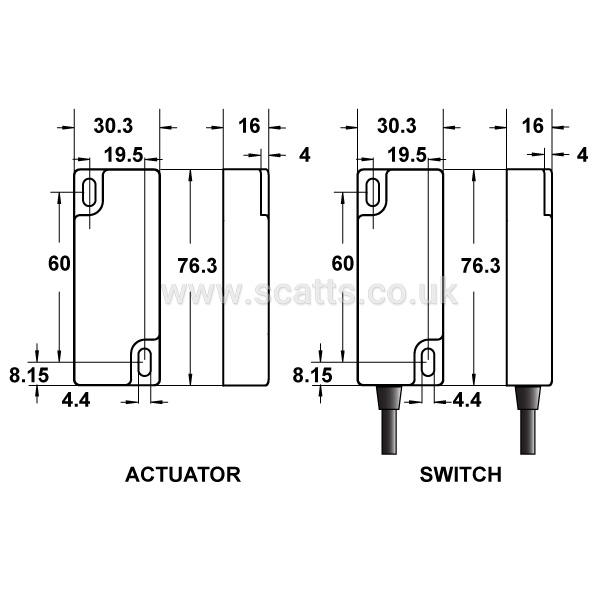

Height |
76.2 mm |
|
Width |
30.3 mm |
|
Depth |
16 mm |
Body Material |
ABS Plastic |
|
Accessory Type |
Spare Actuator |
|
Switching Voltage |
230 V AC |
|
Switching Current |
1 A |
|
Actuator |
Non-Contact - Uncoded Magnet |
|
£26.50
per 1 (ex. VAT)£31.80
per 1 (inc. VAT)
