My Part Number:
Part Number: 1804946
Manufacturer Code: PC 4/ 6-ST-7,62
Multiples of: 50 | Minimum Order: 50

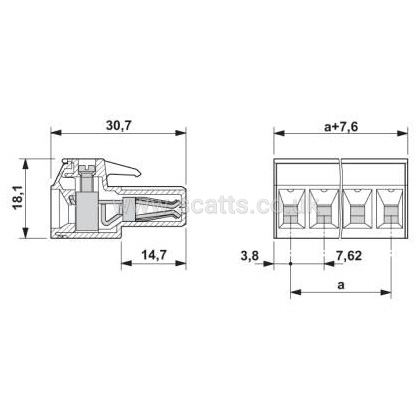

PCB connector
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Nominal current: 20 A
Pitch: 7.62 mm
Number of positions: 6
Connection method: Screw connection with tension sleeve
Contact surface: Tin
Colour: green
Brand |
PHOENIX CONTACT |
|
£6.83
per 1 (ex. VAT)£8.20
per 1 (inc. VAT)
PCB connector
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Integrated double steel spring provides additional safety in the event of temperature and power fluctuations
Nominal current: 20 A
Pitch: 7.62 mm
Number of positions: 6
Connection method: Screw connection with tension sleeve
Contact surface: Tin
Colour: green
Brand |
PHOENIX CONTACT |
|
