My Part Number:
Part Number: 1852095
Manufacturer Code: IC-DFR 9
Multiples of: 50 | Minimum Order: 50

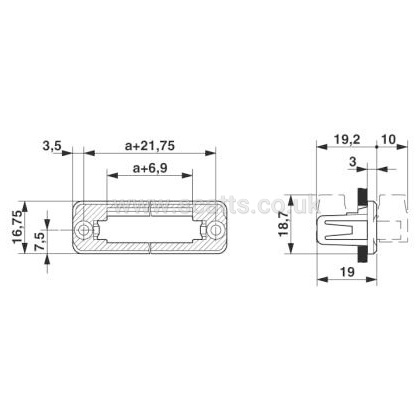

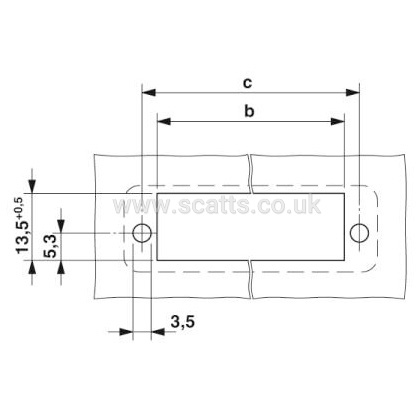

Panel mounting frame
Feed-through assembly frame for inverted COMBICON connector IC 2,5/-STGF-5,08
Cable connection on the inside of the device enables flexible positioning of the panel feed-through
Mounting flanges reduce the mechanical strain on the soldering spots
Can be combined with the MSTB 2,5 range
Number of positions: 9
Pitch: 5.08 mm
Colour: green
This assembly frame can only be used in combination with IC 2,5/...-STGF-5,08
Brand |
PHOENIX CONTACT |
|
£1.24
per 1 (ex. VAT)£1.49
per 1 (inc. VAT)
Panel mounting frame
Feed-through assembly frame for inverted COMBICON connector IC 2,5/-STGF-5,08
Cable connection on the inside of the device enables flexible positioning of the panel feed-through
Mounting flanges reduce the mechanical strain on the soldering spots
Can be combined with the MSTB 2,5 range
Number of positions: 9
Pitch: 5.08 mm
Colour: green
This assembly frame can only be used in combination with IC 2,5/...-STGF-5,08
Brand |
PHOENIX CONTACT |
|
