My Part Number:
Part Number: 2688022
Manufacturer Code: AXL F DI16/4 2F
Multiples of: 1 | Minimum Order: 1

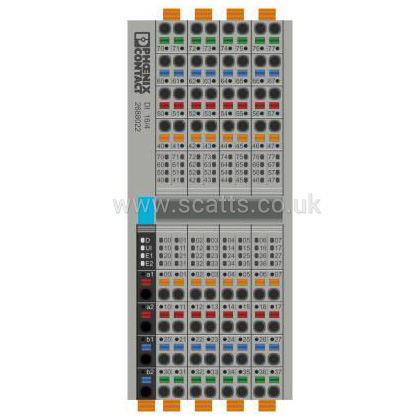

Axioline F, Digital input module, including bus base module and Axioline F connectors
16 digital inputs according to EN 61131-2 type 1 and type 3
24 V DC, 2.4 mA
Connection of sensors in 2, 3, and 4-wire technology
Minimum update time of < 100 μs
Filter times can be adjusted in two increments: < 100 μs or 500 μs
Maximum input frequency: 5 kHz
Maximum permissible load current per sensor: 2 A
Maximum permissible load current of the module: 4 A (2 A for each group of 8 inputs)
Device rating plate stored
Digital inputs: 16 , 24 V DC
Connection method: 4-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£191.99
per 1 (ex. VAT)£230.39
per 1 (inc. VAT)
Axioline F, Digital input module, including bus base module and Axioline F connectors
16 digital inputs according to EN 61131-2 type 1 and type 3
24 V DC, 2.4 mA
Connection of sensors in 2, 3, and 4-wire technology
Minimum update time of < 100 μs
Filter times can be adjusted in two increments: < 100 μs or 500 μs
Maximum input frequency: 5 kHz
Maximum permissible load current per sensor: 2 A
Maximum permissible load current of the module: 4 A (2 A for each group of 8 inputs)
Device rating plate stored
Digital inputs: 16 , 24 V DC
Connection method: 4-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
