My Part Number:
Part Number: 2688077
Manufacturer Code: AXL F RTD8 1F
Multiples of: 1 | Minimum Order: 1

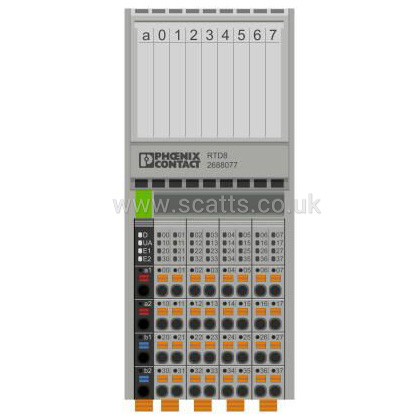

Axioline F, Temperature recording module, including bus base module and Axioline F connectors
8 analog input channels for the connection of resistance temperature detectors (RTD)
500 Ω and 5 kΩ linear inputs
Connection of sensors in 2, 3, and 4-wire technology
Integrated, digital sensor linearization
Standardized measured value representation directly in °C, °F or Ω
Measured value display in 16-bit format or floating point format
Programmable filters
Short-circuit protected inputs
Device rating plate stored
Temperature stability
Very high level of noise immunity
Low noise emission
Installation monitoring by means of “Channel scout” function
Analog inputs: 8 (for resistance temperature detectors)
Connection method: 2, 3, 4-wire (shielded)
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£492.50
per 1 (ex. VAT)£591.00
per 1 (inc. VAT)
