My Part Number:
Part Number: 2688491
Manufacturer Code: AXL F AI4 I 1H
Multiples of: 1 | Minimum Order: 1

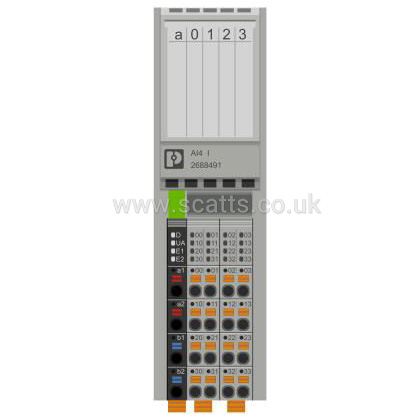

Axioline F, Analog input module, integrated sensor supply, including bus base module and Axioline F connectors
4 analog, bipolar input channels for the connection of current signals
Connection of sensors in 2, 3, and 4-wire technology
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA
Simultaneous scanning of all channels by means of simultaneous sampling
High crosstalk attenuation between the channels, thanks to separate signal paths
Particularly robust against electromagnetic interference
Device rating plate stored
Analog inputs: 4, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
Connection method: 2, 3, 4-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£342.33
per 1 (ex. VAT)£410.80
per 1 (inc. VAT)
Axioline F, Analog input module, integrated sensor supply, including bus base module and Axioline F connectors
4 analog, bipolar input channels for the connection of current signals
Connection of sensors in 2, 3, and 4-wire technology
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA
Simultaneous scanning of all channels by means of simultaneous sampling
High crosstalk attenuation between the channels, thanks to separate signal paths
Particularly robust against electromagnetic interference
Device rating plate stored
Analog inputs: 4, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
Connection method: 2, 3, 4-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
