My Part Number:
Part Number: 2701916
Manufacturer Code: AXL F DI8/1 DO8/1 1H
Multiples of: 1 | Minimum Order: 1

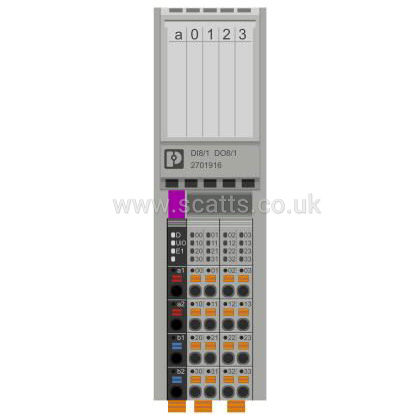

Axioline F, Digital I/O module, including bus base module and Axioline F connectors
8 digital inputs
24 V DC, 2.4 mA
Connection of sensors in single-wire technology
Filter times can be adjusted in three increments: < 100 μs, 1000 μs or 3000 μs
Maximum input frequency: 5 kHz
8 digital outputs
24 V DC, 500 mA
Connection of actuators in single-wire technology
Minimum update time of < 100 μs
Device rating plate stored
Diagnostic and status indicators
Digital inputs: 8 , 24 V DC
Connection method: 1-wire
Digital outputs: 8, 24 V DC, 500 mA
Connection method: 1-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£159.78
per 1 (ex. VAT)£191.74
per 1 (inc. VAT)
