My Part Number:
Part Number: 2702825
Manufacturer Code: IB IL 24 DO 4/EF-ECO
Multiples of: 1 | Minimum Order: 1

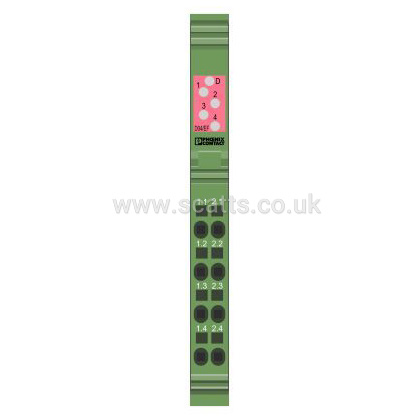

Inline ECO, Digital output terminal, including Inline connector
4 digital outputs
Connection of actuators in 2 and 3-wire technology
Nominal current per output: 500 mA
Total current of the terminal: 2 A
Short-circuit-proof and overload-protected outputs
Diagnostic and status indicators
Approved for use in a safety-related segment circuit
Digital outputs: 4, 24 V DC, 500 mA
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£91.52
per 1 (ex. VAT)£109.82
per 1 (inc. VAT)
Inline ECO, Digital output terminal, including Inline connector
4 digital outputs
Connection of actuators in 2 and 3-wire technology
Nominal current per output: 500 mA
Total current of the terminal: 2 A
Short-circuit-proof and overload-protected outputs
Diagnostic and status indicators
Approved for use in a safety-related segment circuit
Digital outputs: 4, 24 V DC, 500 mA
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
