Part Number: 2861315
Manufacturer Code: IB IL AO 1/SF-PAC
Multiples of: 1 | Minimum Order: 1

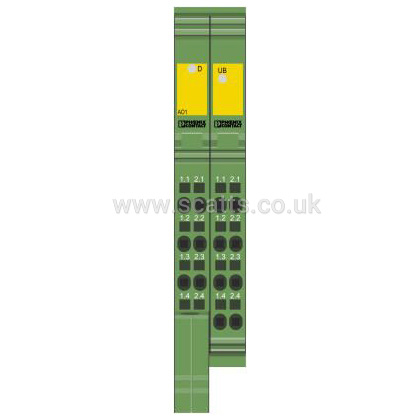

Inline, Analog output terminal, including Inline connectors and marking fields
The terminal is designed for use within an Inline station.
It is used to output analog current and voltage signals.
1 analog output for the connection of either voltage or current signals
Connection of actuators in 2-wire technology
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA
Voltage range: 0 V ... 10 V
Process data update including conversion time of the digital/analog converter < 1 ms
Analog output: 1, 0 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA
Connection method: 2-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£215.93
per 1 (ex. VAT)£259.12
per 1 (inc. VAT)
