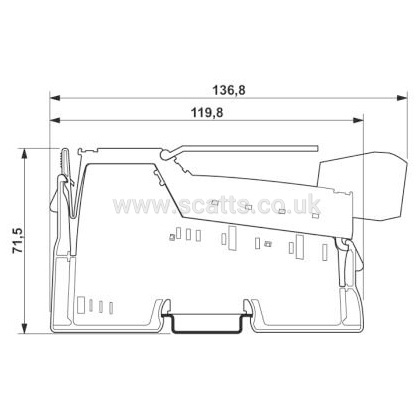

INLINE-PULSE.WIDTH.MOD MODULE

Inline function terminal for pulse width and frequency modulation or activation of impulse-driven motor control parts with pulse/direction interface, two outputs for 5 V or 24 V

The terminal is designed for use within an Inline station.
Two channels that operate independently of one another offer the option of pulse width modulation (PWM) for the output signals.
The terminal block supports the following operating modes: PWM (pulse width modulation), frequency generator, single shot (single pulse generator), and pulse direction signal.

2 independent channels
Output of 5 V or 24 V signals
Maximum frequency of 50 kHz
Pulse direction signal output without integrated ramp function for controlling step motor power supply units
Single pulse output (pulse length of 10 μs to 25.5 s can be set)
Pulse width modulation (period length can be set in increments from 100 μs to 10 s, duty factor in 0.39% increments)
Frequency output (frequency can be set between 0 Hz and 50 kHz)
