My Part Number:
Part Number: 2863083
Manufacturer Code: IB IL AO 2/SF-PAC
Multiples of: 1 | Minimum Order: 1

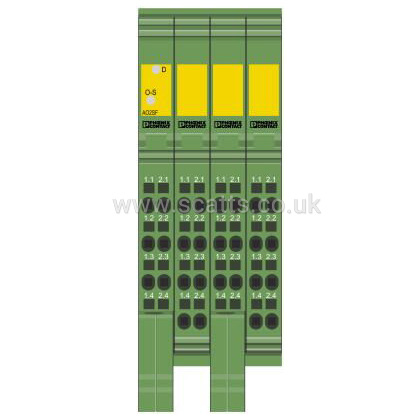

Inline, Analog output terminal, including Inline connectors and marking fields
The terminal is designed for use within an Inline station.
It is used to output analog current and voltage signals.
Short update time of < 1 ms
Short-circuit-proof current outputs
Bipolar outputs
Measured value acquisition with 16-bit resolution
Analog outputs: 2, 0 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA
Connection method: 2-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£326.35
per 1 (ex. VAT)£391.62
per 1 (inc. VAT)
Inline, Analog output terminal, including Inline connectors and marking fields
The terminal is designed for use within an Inline station.
It is used to output analog current and voltage signals.
Short update time of < 1 ms
Short-circuit-proof current outputs
Bipolar outputs
Measured value acquisition with 16-bit resolution
Analog outputs: 2, 0 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA
Connection method: 2-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
