My Part Number:
Part Number: 2863928
Manufacturer Code: IB IL 24 DI 4-ME
Multiples of: 1 | Minimum Order: 1

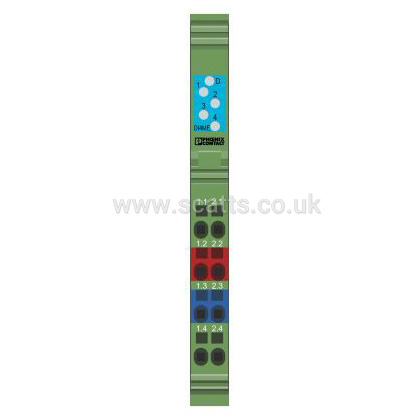

Inline, Digital input terminal, including Inline connector and labeling field
The terminal is designed for use within an Inline station.
It is used to acquire digital signals.
4 digital inputs
Connection of sensors in 2 and 3-wire technology
Maximum permissible load current per sensor: 250 mA
Maximum permissible load current from the terminal: 1 A
Diagnostic and status indicators
Digital inputs: 4 , 24 V DC
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£37.77
per 1 (ex. VAT)£45.32
per 1 (inc. VAT)
Inline, Digital input terminal, including Inline connector and labeling field
The terminal is designed for use within an Inline station.
It is used to acquire digital signals.
4 digital inputs
Connection of sensors in 2 and 3-wire technology
Maximum permissible load current per sensor: 250 mA
Maximum permissible load current from the terminal: 1 A
Diagnostic and status indicators
Digital inputs: 4 , 24 V DC
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
