My Part Number:
Part Number: 2865340
Manufacturer Code: MACX MCR-EX-SL-RPSSI-I
Multiples of: 1 | Minimum Order: 1
Ex i repeater power supply and input signal conditioner, HART. Transmits supplied or active 0/4 - 20 mA signals from the hazardous area to a load (active or passive) in the safe area. 3-way electrical isolation; SIL 2 according to IEC 61508, with screw connection
0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
Measuring transducer supply voltage > 16 V
0/4 mA ... 20 mA output, active up to 1000 load or passive
Bidirectional HART signal transmission
Error indication according to NAMUR NE 43
SIL 2 according to IEC 61508/EN 61508
Installation in zone 2, protection type "ec" (EN 60079-7) permitted
3-way electrical isolation
Power supply possible via DIN rail connector
Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators

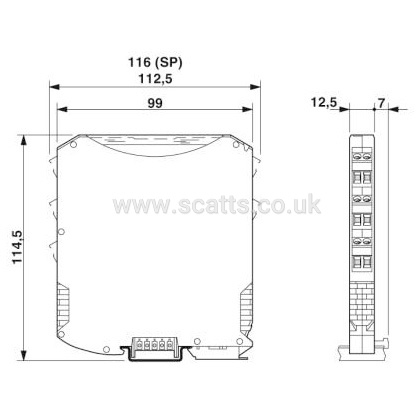

Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
Brand |
PHOENIX CONTACT |
|
£235.14
per 1 (ex. VAT)£282.17
per 1 (inc. VAT)
