INLINE 4 X ANALOG INPUT V/I

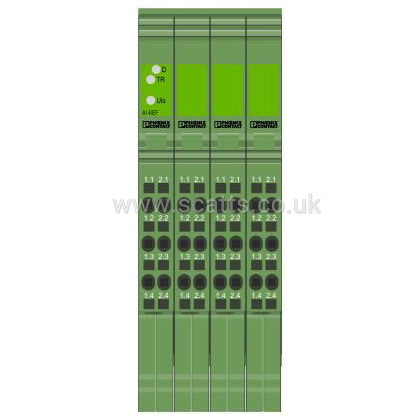

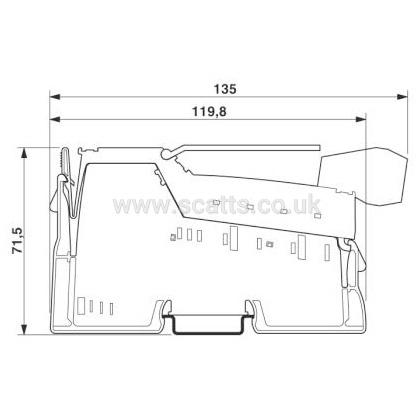

nline, Analog input terminal, including Inline connectors and marking fields

The terminal is designed for use within an Inline station.
It is used to acquire analog voltage and current signals.

Short update time of 1 ms, maximum for all channels
Sensor supply with channel-specific integrated short-circuit and overload protection
Bus-synchronous provision of input values with very low jitter (< 10 μs)
Measured value acquisition with 16-bit resolution
4 differential signal inputs
Connection of sensors in 2, 3, and 4-wire technology
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA
Voltage ranges: 0 V ... 10 V, ±10 V, 0 V ... 5 V, ±5 V
Short-circuit
Diagnostic and status indicators

Analog inputs: 4, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
Connection method: 2, 3, 4-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
