My Part Number:
Part Number: 2878638
Manufacturer Code: IB IL SGI 2/F-PAC
Multiples of: 1 | Minimum Order: 1

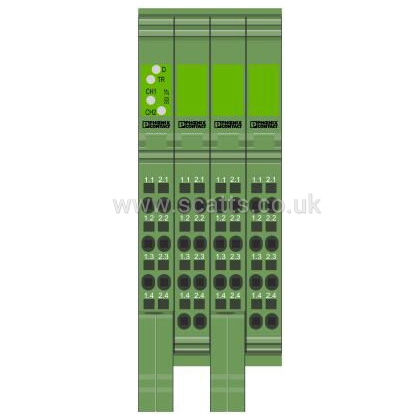

Inline analog strain gauge input terminal, complete with accessories (connector and labeling field), 2 fast inputs, 4, 6-wire connection method
The terminal is designed for use within an Inline station.
This terminal is a fast input module used to connect load cells, force transducers, mass pressure transducers, and similar devices based on strain gauges.
2 fast inputs for strain gauge
Connection of the strain gauges with 6- and 4-wire technology
Sensor supply voltage provided by the terminal, no external power supply required
Communication either via process data or parameter channel (PCP Compact)
Channels are parameterized independently of one another via the bus system
Bus-synchronous process data update
Brand |
PHOENIX CONTACT |
|
£520.35
per 1 (ex. VAT)£624.42
per 1 (inc. VAT)
