My Part Number:
Part Number: 2981059
Manufacturer Code: PSR-SCP-24UC/ESL4/3X1/1X2/B
Multiples of: 1 | Minimum Order: 1

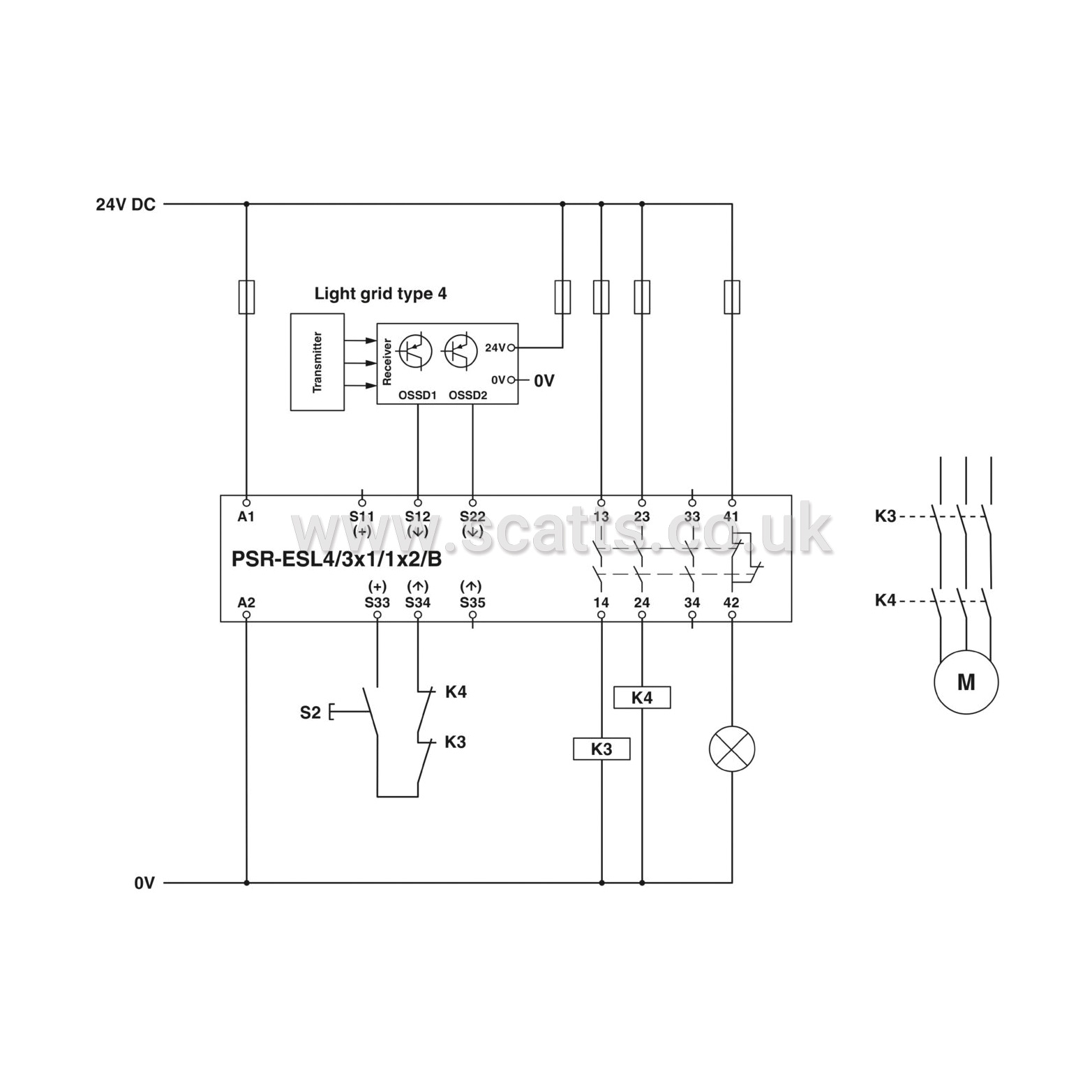

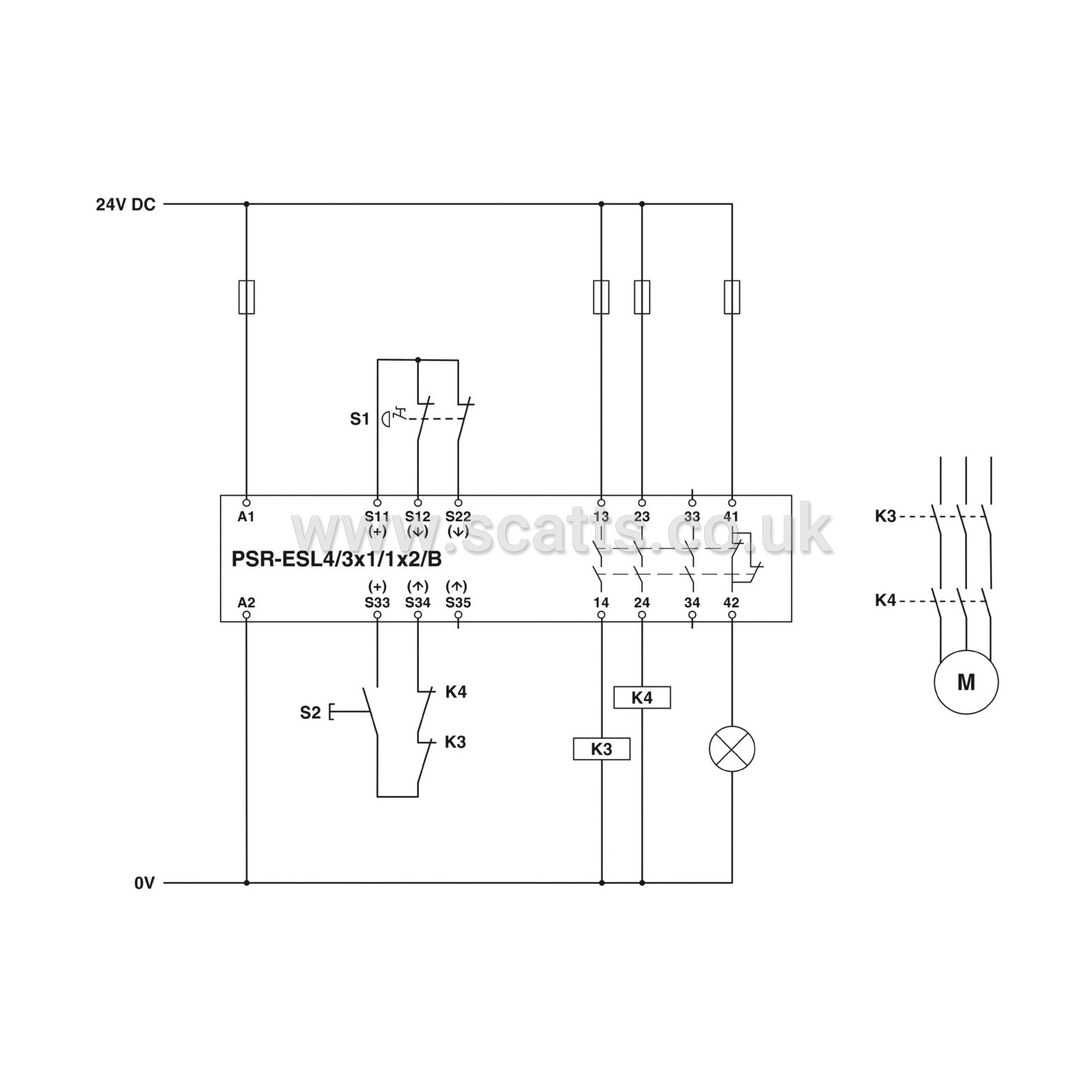

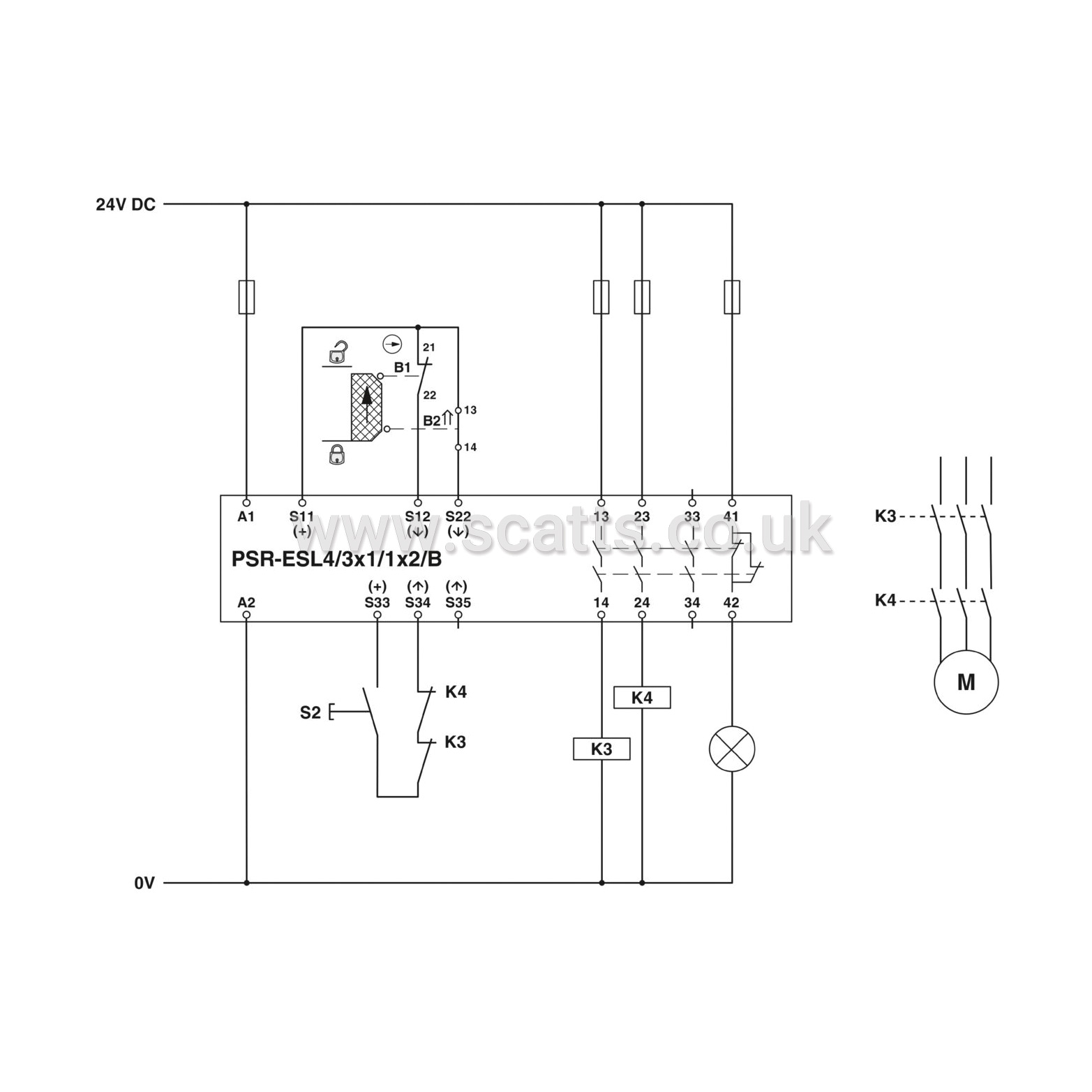

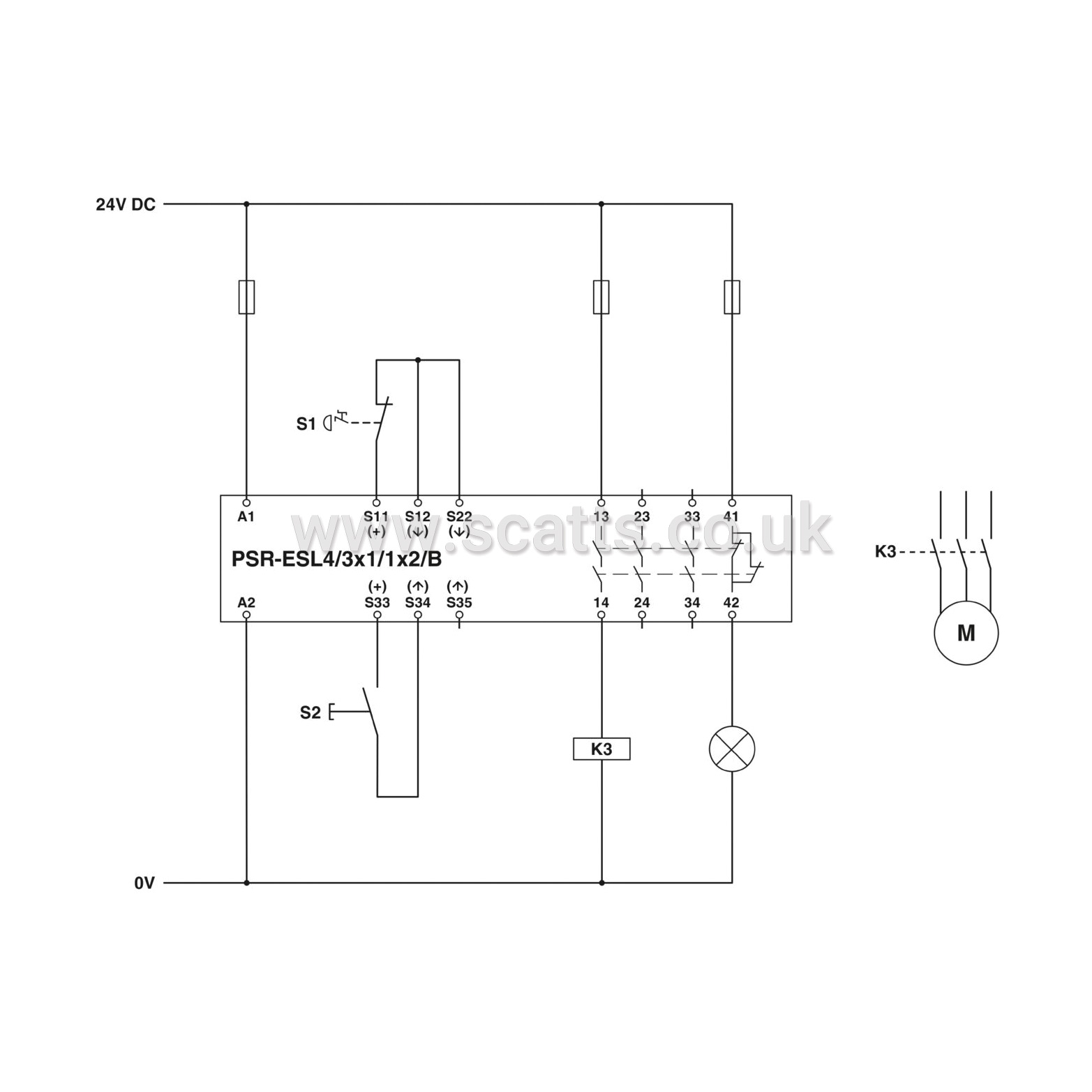

Safety relay for emergency stop, safety doors, and light grids up to SIL 3, Cat. 4, PL e, 1 or 2-channel operation, automatic or manual, monitored start, 3 enabling current paths, US = 24 V DC, plug-in screw terminal block
Product type: Safety relays
Product family: PSRclassic
Application: Emergency stop, Safety door, Light grid
Mechanical service life: approx. 107 cycles
Relay type: Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3
Times
Typical response time: 125 ms (automatic start), 110 ms (manual, monitored start)
Typ. starting time with Us: 125 ms (when controlled via A1)
Typical release time: 10 ms (on demand via the sensor circuit), 45 ms (on demand via A1)
Restart time: < 1 s (Boot time)
Recovery time: 1 s (following demand of the safety function)
Brand |
PHOENIX CONTACT |
|
£187.36
per 1 (ex. VAT)£224.83
per 1 (inc. VAT)
