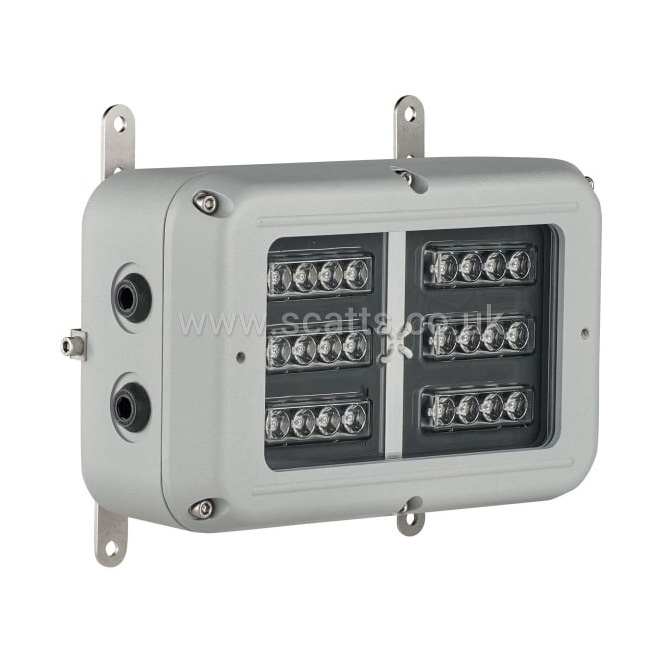

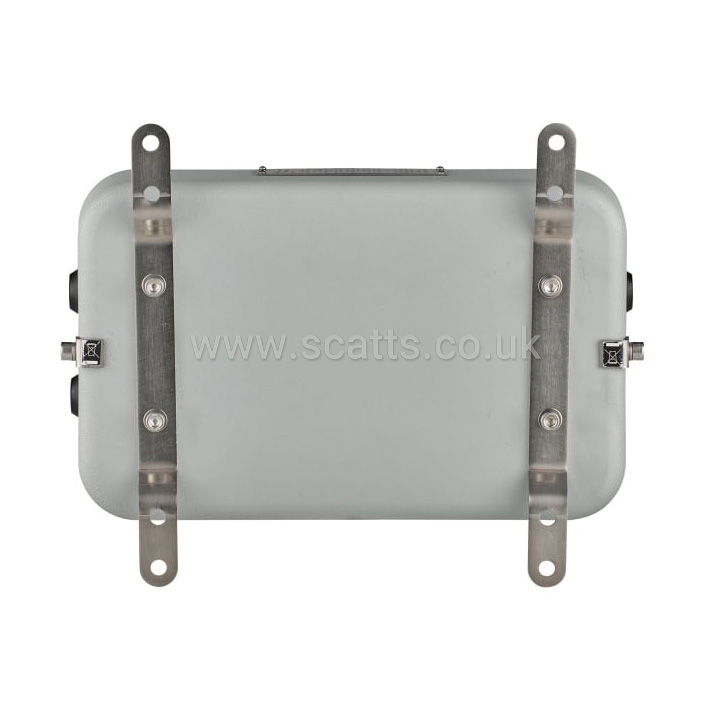

SERIES SPX, EX BULKHEAD LIGHT - CLEAR GLASS LENS, LED, 110 - 254V AC FOR ZONES 1, 2, 21 & 22

My Part Number:

Part Number: SPX-BL24W120120

Manufacturer Code: SPX-BL24-W-120120/110-254VAC

Multiples of: 1 | Minimum Order: 1

View Technical Documents
ATEX
IECEX
Currently out of stock - available to back order

• ATEX and IEC Ex approved - Zone 1
• Ultra Long Life LED
• High Lumen Output LED
• Compact, Low Profile Design
• Easy Installation and Maintenance
• Emergency Variants
• Wide Operating Temp -50° to +55°
• VARIO Lens Technology - easy modification of beam patterns
• Zone 2 Variants available

There are currently no videos available for this product
Brand
RAYTEC
Height
288 mm
Width
182 mm
Depth
105 mm
Weight
5 kg
IP Rating
IP66, IP67
Body Material
Marine Grade Aluminium
Minimum Operating Temperature
52 °C
Maximum Operating Temperature
55 °C
ATEX Approval - Dust
Ex tb IIIC T98°C Db
ATEX Approval - Gas
Ex e mb IIC T4 Gb
Hazadrous Area Certification
1, 2, 21, 22
Approvals
ATEX, IECEx
ATEX Certificate Number
CML13ATEX3007, IECEx CML14.0001
Cable Entry Method
Direct
Colour Temperature
White: 6000 K+
CRI
80+
Lens Colour
Clear Glass
Number Of Terminals
6
Power Consumption
34 W
Voltage Rating
110 V AC, 230 V AC
Colour
Light Grey
Size Reference
1 Ft, 300 mm
Rated Frequency
50 Hz, 60 Hz
Wiring
Loop In Loop Out, Through Wired
Light Source
LED
Cable Entries
4 x M20
Nominal Output
2500 Lm
Maximum Conductor Size
4 mm²

£519.00

per 1 (ex. VAT)

£622.80

per 1 (inc. VAT)
