My Part Number:

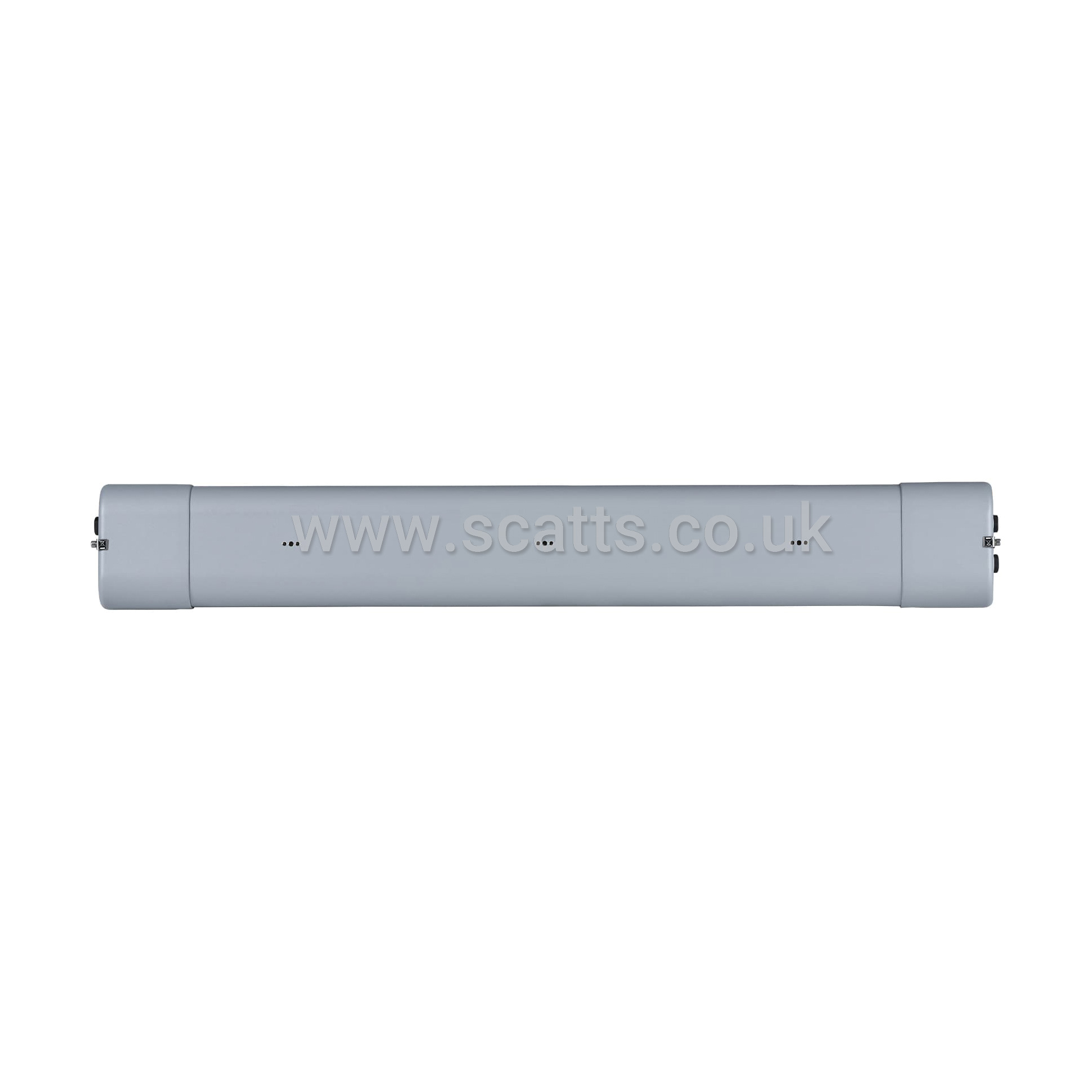

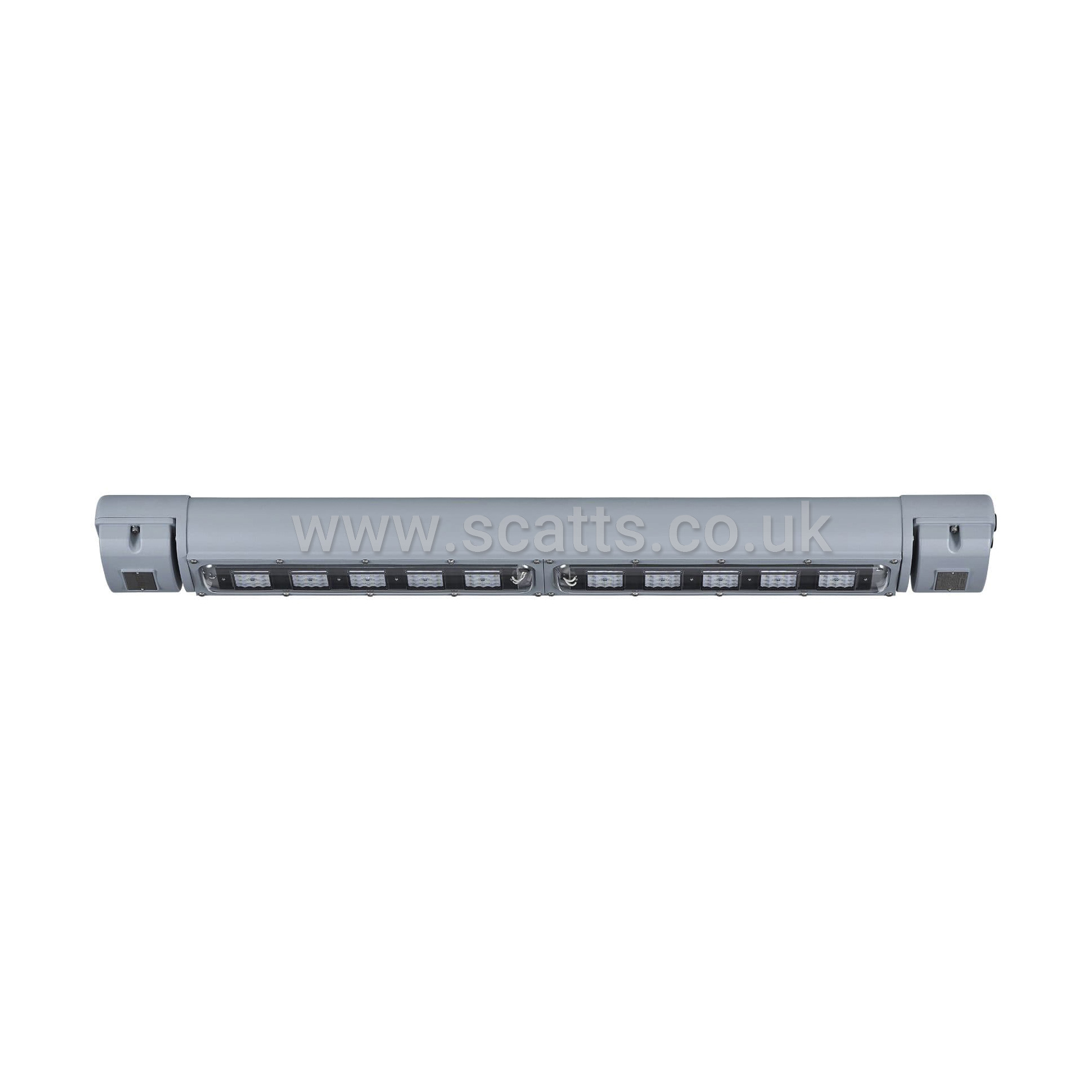

Part Number: SPX-WL168
Manufacturer Code: SPX-WL168/110-254VAC
Multiples of: 1 | Minimum Order: 1
• Ultra Long Life LED
• High Lumen Output LED
• Fully Retrofitable
• Easy Installation and Maintenance
• Battery Back-up
• Wide Operating Temp -40° to +55°
Brand |
RAYTEC |
|
Height |
1295 mm |
|
Width |
174 mm |
|
Depth |
108 mm |
|
Weight |
9 kg |
|
IP Rating |
IP66, IP67 |
|
Body Material |
Marine Grade Aluminium |
|
Minimum Operating Temperature |
-40 °C |
|
Maximum Operating Temperature |
55 °C |
ATEX Approval - Dust |
Ex tb IIIC T75°C Db |
|
ATEX Approval - Gas |
Ex e mb IIC T4 Gb |
|
Hazadrous Area Certification |
1, 2, 21, 22 |
|
Approvals |
ATEX, IECEx |
ATEX Certificate Number |
CML14ATEX3119, IECEx EX CML 15.0001 |
|
Cable Entry Method |
Direct |
|
Colour Temperature |
White: 6000 K+ |
|
CRI |
80+ |
|
Lens Colour |
Clear |
|
Number Of Terminals |
6 |
|
Power Consumption |
59 W |
|
Voltage Rating |
110 V AC, 230 V AC |
|
Colour |
Light Grey |
|
Size Reference |
1200 mm, 4 Ft |
|
Rated Frequency |
50 Hz, 60 Hz |
|
Wiring |
Loop In Loop Out, Through Wired |
|
Light Source |
LED |
|
Cable Entries |
4 x M20 |
|
Nominal Output |
6240 Lm |
|
Maximum Conductor Size |
4 mm² |
|
£612.00
per 1 (ex. VAT)£734.40
per 1 (inc. VAT)
