My Part Number:

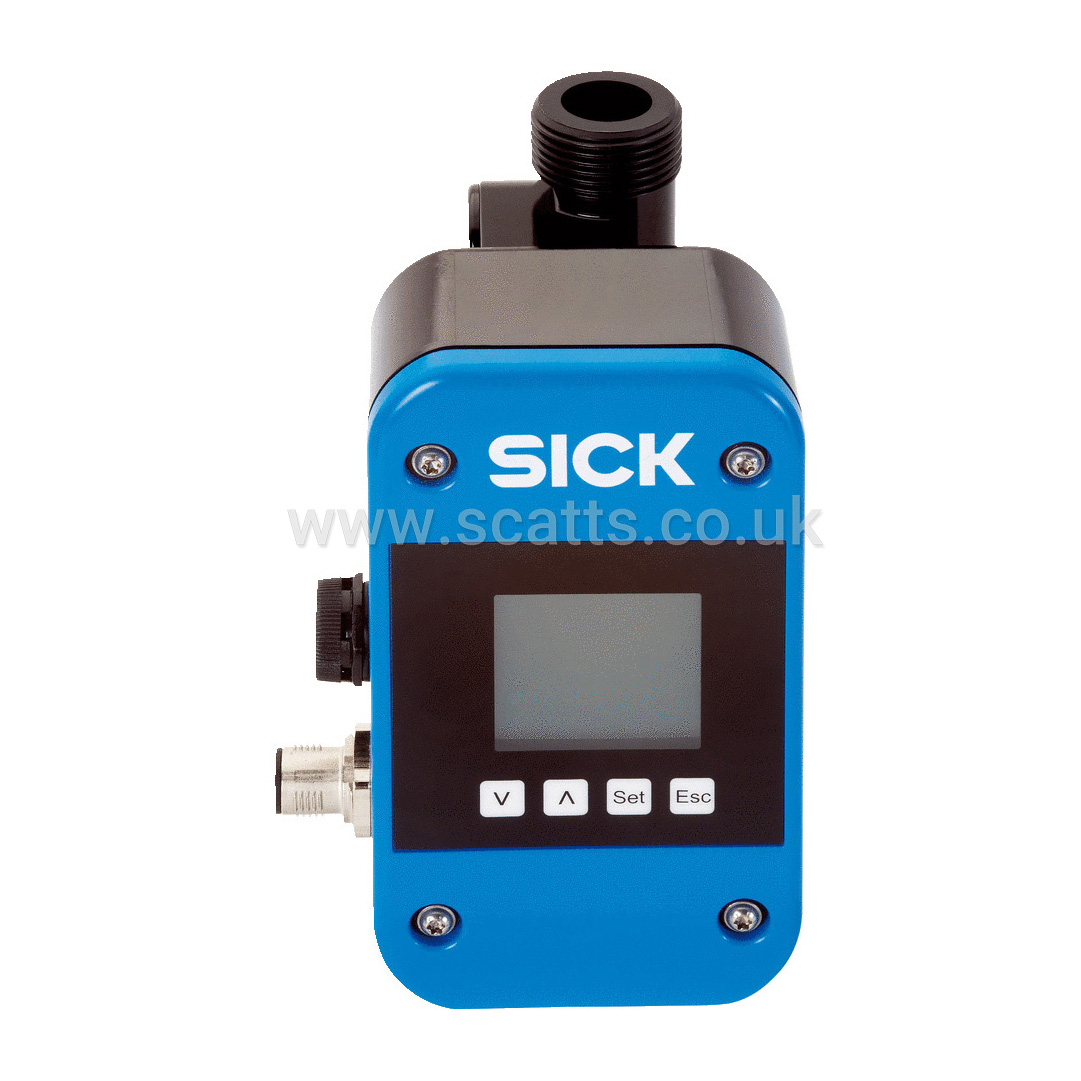

Part Number: FFUS20-1C1IO
Manufacturer Code: 6049061
Multiples of: 1 | Minimum Order: 1
Flow sensors FFU
Measurement principle: Ultrasonic sensor
Medium: Fluids
Nominal width measuring tube: DN 20
Process temperature: 0 °C ... +80 °C
Process pressure: ≤ 10 bar
Brand |
SICK |
|
Display Type |
TFT |
|
Electrical Connection |
M12 x 1 |
|
Height |
88 mm |
|
Width |
162 mm |
|
Depth |
84 mm |
|
Weight |
420 g |
|
IP Rating |
IP67 |
|
Body Material |
PPSU |
|
Approvals |
CE |
Number Of Pins |
5 |
|
Supply Voltage |
24 V DC |
|
Acceptable Media |
Liquid |
|
Wetted Parts |
PPSU |
|
Measuring Principle |
Ultrasonic |
|
Orifice Size |
DN20 |
|
Process Connection |
Clamp Connection |
|
Minimum Sensing Range |
3.5 L/min |
|
Maximum Sensing Range |
60 L/min |
|
Output Signal |
1 x 4-20 mA/PP, 1 x PNP/NPN |
|
Maximum Ambient Temperature |
60 °C |
|
Maximum Pressure |
10 bar |
|
Maximum Media Temperature |
80 °C |
|
£807.88
per 1 (ex. VAT)£969.46
per 1 (inc. VAT)
