My Part Number:
Part Number: TBS/6063977
Manufacturer Code: TBS-1DES41506CE
Multiples of: 1 | Minimum Order: 1

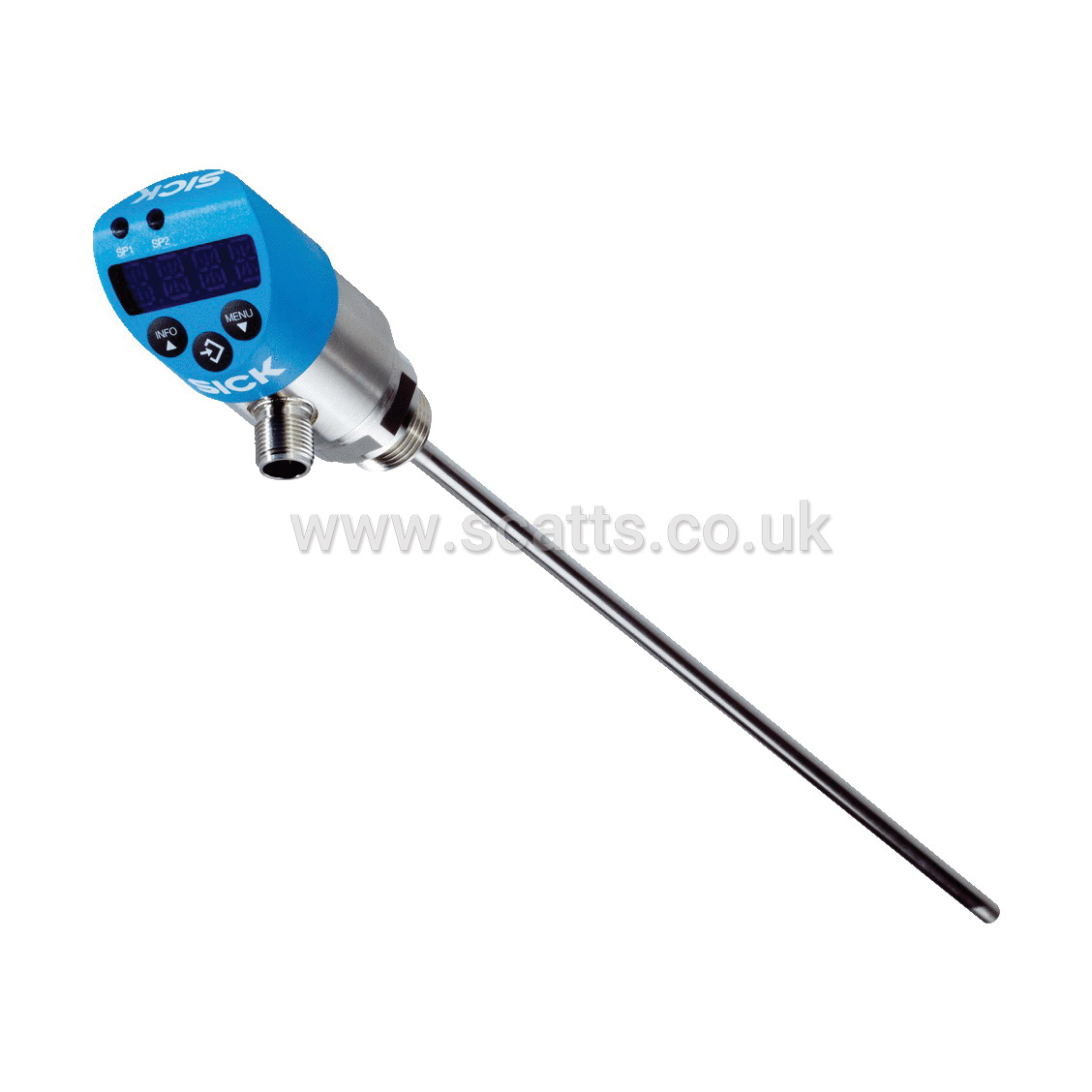

Temperature sensors TBS / Resistance thermometer
Measuring range: –20 °C ... +120 °C
Sensor element: Pt1000, 2-wire, class A according to IEC 60751
Output signals: 2 x PNP + 4 mA ... 20 mA
Switching output: Transistor
Switching voltage: Supply voltage [V DC] - 1 V DC
Maximum switching current: ≤ 250 mA
Switching delay: 0 s ... 50 s, programmable
Setting accuracy of switching outputs: +0.1 °C
Scaling of measuring range: Zero point: max. +25 % of span, Full scale: max. –25 % of span
Scaling of measuring range: Max. +25 % of span, max. –25 % of span
Display: 14-segment LED, blue, 4-digits, height 9 mm,
Display: electronically turnable by 180 °, update: 200 ms
Rotatable housing: Display against housing with electrical connection: 330 °, Housing against process connection: 320 °
Brand |
SICK |
|
£487.19
per 1 (ex. VAT)£584.63
per 1 (inc. VAT)
