FAN HEATER

Enclosure heater with fan
CS 130

The high-performance fan heater is designed for uniform temperature control of enclosures and enclosures to protect against harmful condensation.


Device name: Enclosure heater with fan
Device type: Fan heater Integrated control
Series: CS 130
Temperature monitoring: Overheating protection in the event of fan failure with automatic reset
Protection class: II
Protection type: IP20
Heating element: PTC resistor (PTC)
Casing: Plastic to UL94 V-0, black
AC/DC: AC
Frequency: 50;60 Hz

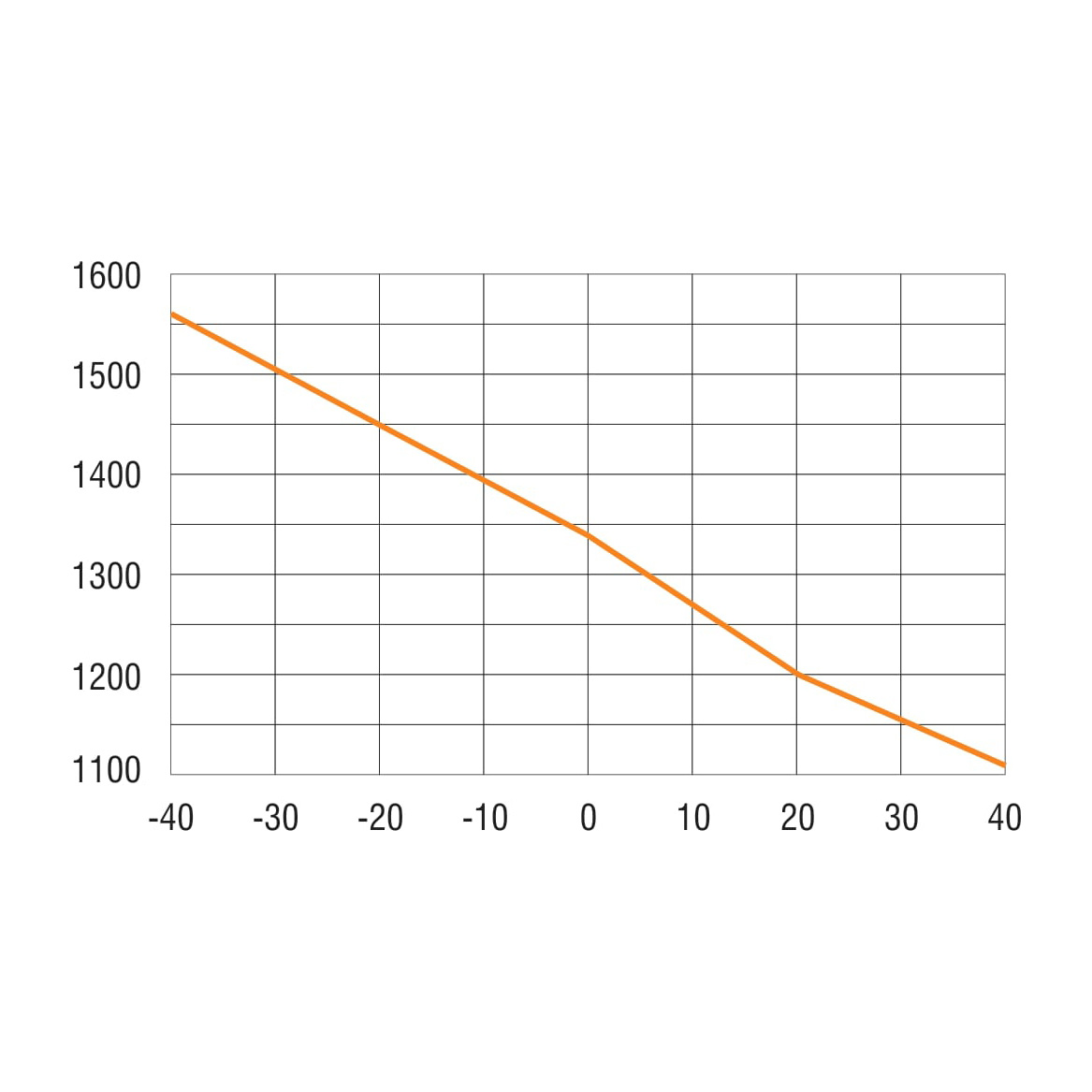

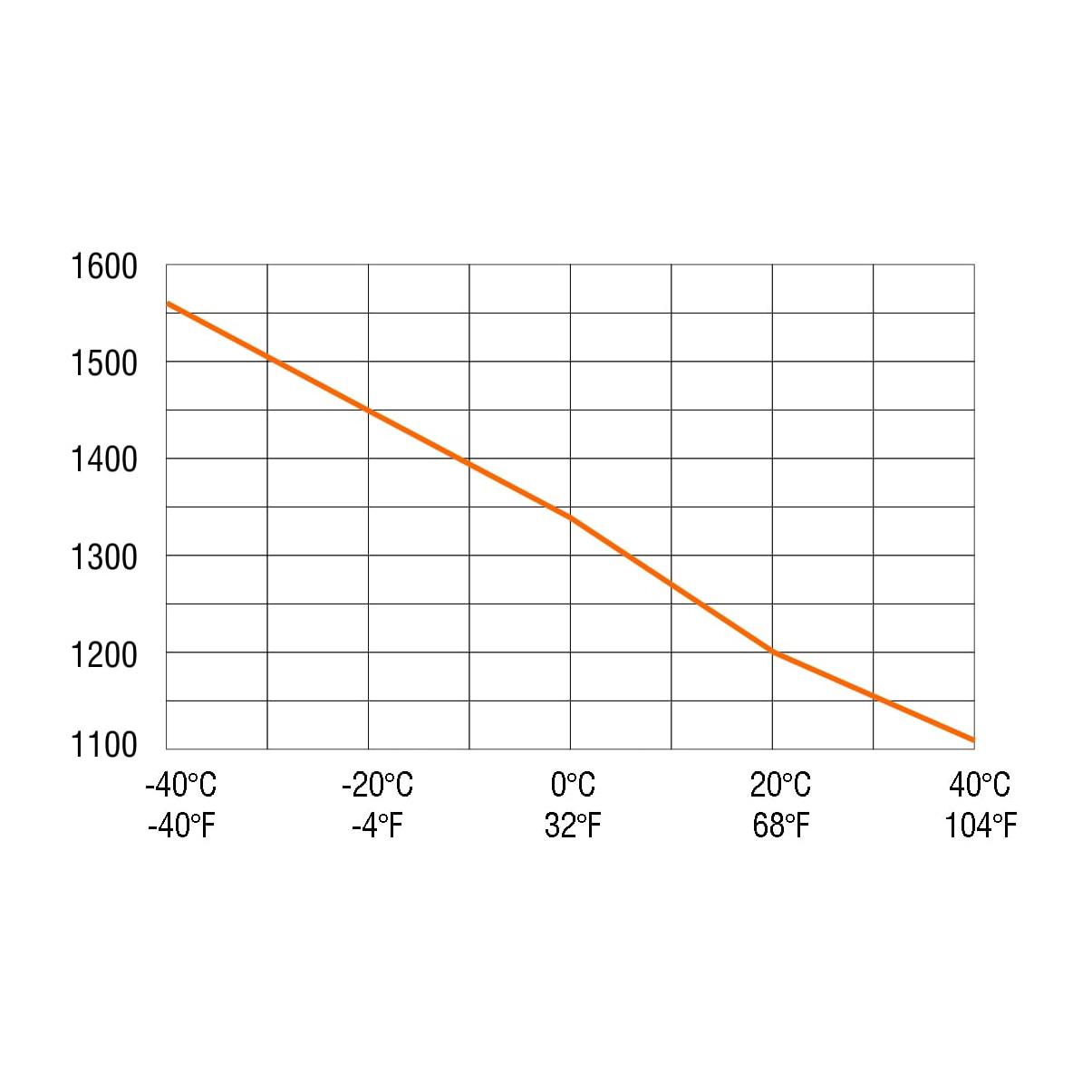

Heating capacity minimum: 1200 W
Axial fan: 160 m³/h
Service life: >50000 h
Operating temperature: -45 °C - 70 °C
Operating humidity: ≤90 % RH
Storage humidity: ≤90 % RH
Storage temperature: -45 °C - 70 °C
Connection type: Connection terminal
Torque: 0.8 Nmmax.

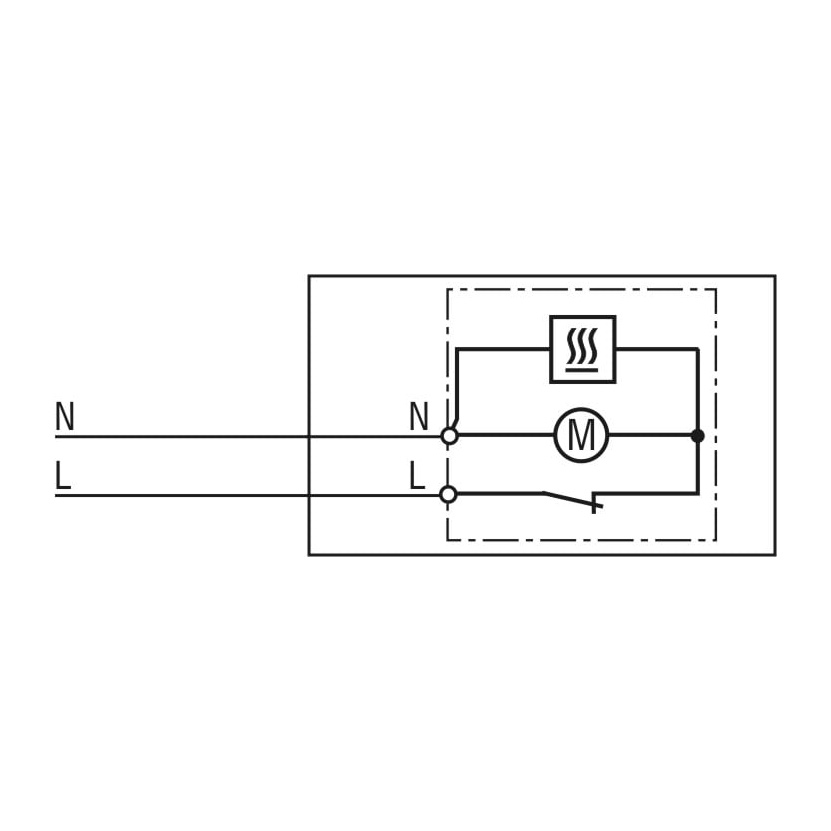

Connection: 2-pole max. 2.5 mm² with strain relief
Mounting: Clip for 35 mm DIN rail Screw fixing
Installation position: Airflow direction "in" vertical / connection at the bottom

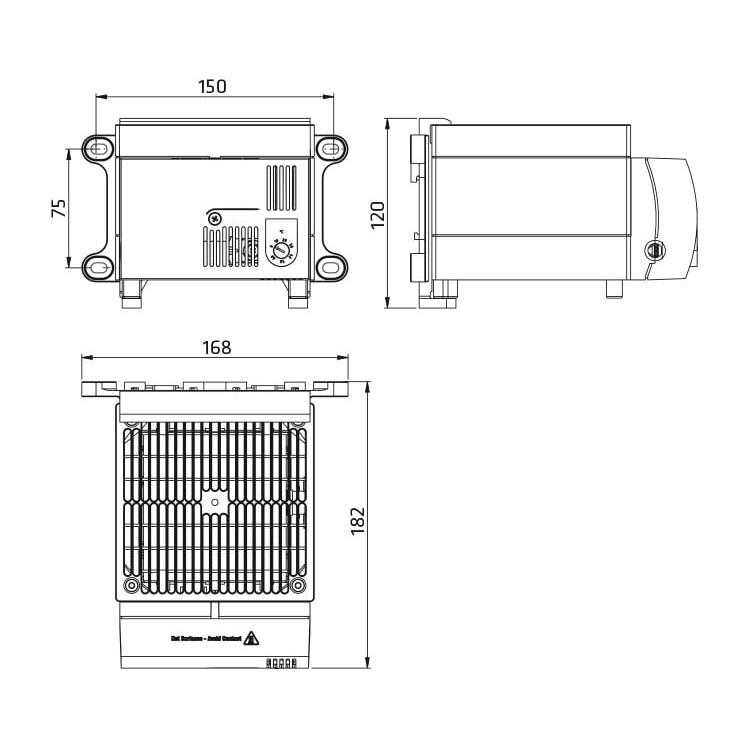

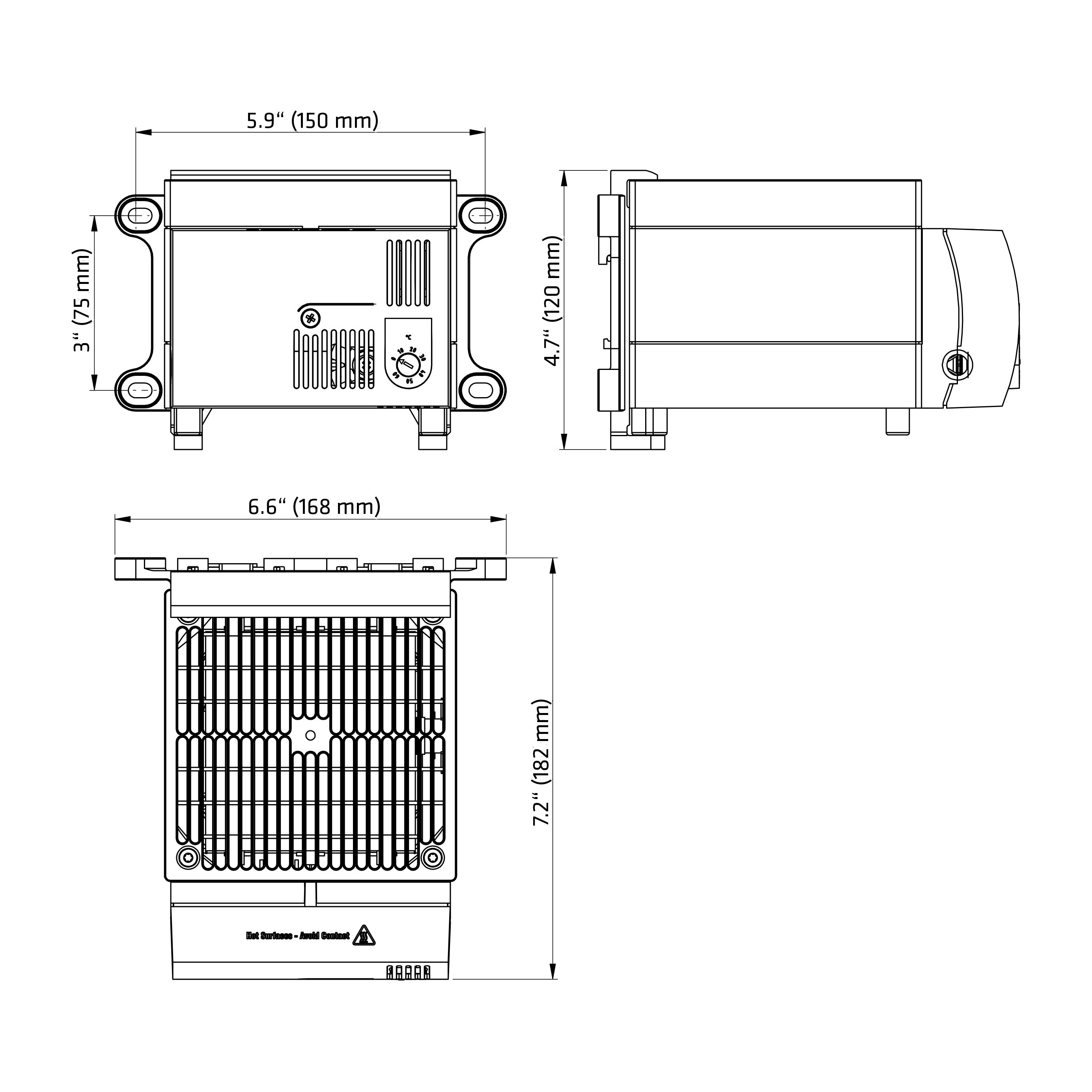

Height: 120 mm
Width: 168 mm
Depth: 182 mm
Weight: 1200 g
