My Part Number:
Part Number: DD08410.0-00/PK1
Manufacturer Code: 08410.0-00
Multiples of: 1 | Minimum Order: 1
DRAINAGE DEVICE
DD 084 | IP66 / IP67 / IP69K
Drainage device for draining condensation from enclosures. Conforms to protection type IP66. No spray water can enter as a water-permeable membrane drains the cabinet via capillary action.
• Protection type IP66
• Easy to install
• Weather-resistant, spray water protection
Mounting: thread M50 x 1.5 with nut (wrench size 60mm, housing 50mm)
Torque: < 6 Nm
Depth in enclosure: < 17.5 mm
Material: plastic according to UL94 V-0, umbra grey, weather proof and UV light resistant according UL746C (f1)
Water entry height: 0 mm (at 0.5 mm wall thickness)
Sealing: sealing gasket NBR
Water flow-through: approx. 200 ml/h at a water column of 5mm

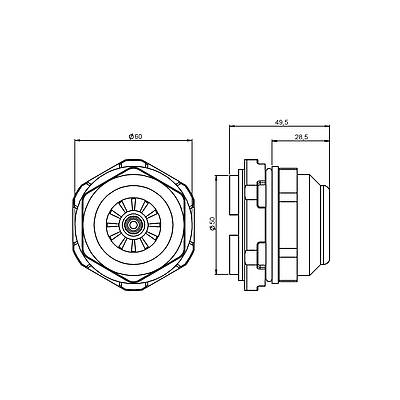

Dimensions: Ø 60 x 49.5 mm
Fitting position: horizontal, lowest point
Operating/Storage temperature: -45 to +70 °C (-49 to +158 °F)
Approvals: EAC
Note: Material adheres to limit values in accordance with RoHS3
Brand |
STEGO |
|
£14.09
per 1 (ex. VAT)£16.91
per 1 (inc. VAT)
