HYGROSTAT 40 - 90% ADJUSTMENT RELATIVE HUMIDITY, 230V AC

ELECTRONIC HYGROSTAT
EFR 012


The hygrostat is used to prevent condensation and monitors relative humidity inside control cabinets and enclosures. When the set value is reached, the heater is switched on and the integrated LED lights up.
• Adjustable or fixed relative humidity
• Optical status indicator (LED)
• High switch performance
• Temperature-compensated
• Clip-mounted

Switch difference: 5% RH (±3% RH tolerance) at +25 °C (+77 °F), 50% RH
Reaction time: 5 s
Contact type: change-over contact (relay)
Service life: > 50,000 cycles
Max. switching capacity (relay output): 240VAC / 120VAC 8 (1.6) A, DC 100W at 24VDC
Max. inrush current: AC 16A for 10 s
Optical indicator: LED
Connection: 5-pole terminal, clamping torque 0.5Nm max.: rigid/stranded1 wire 2.5mm² (AWG 14)
Mounting: clip for 35mm DIN rail, EN 60715
Casing: plastic according to UL94 V-0, light grey

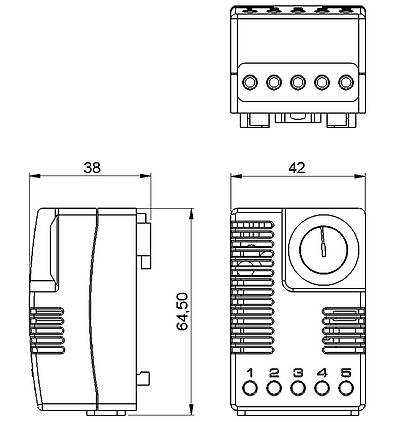

Dimensions: 64,5 x 42 x 38 mm
Weight: ~ 70 g
Fitting position: vertical
Operating/Storage temperature: 0 to +60 °C (+32 to +140 °F) / -20 to +70 °C (-4 to +158 °F)
Operating/Storage humidity: < 90% RH (non-condensing)
Protection type: IP20
