My Part Number:
Part Number: LED02220.0-00
Manufacturer Code: 02220.0-00
Multiples of: 1 | Minimum Order: 1
LED ENCLOSURE LAMP
LED 022
The perfect lamp for control cabinets: the compact and bright Varioline LED enclosure lamp. Up to 1,700 lm luminous flux for good visibility and workplace safety inside large control cabinets. The glare-free, 360°-rotatable light fixtures is fitted with mid-power LEDs. Long, zero-maintenance service life of 60,000 hours.
• Switch options: PIR motion sensor, on/off switch, without switch (prepared for external switch)
• Magnet- or screw-mounted
• Integrated network component, feed-through wiring
• Colour of light emitted 6,500 K (daylight); 120° beam angle
OVERVIEW TECHNICAL DATA
Power consumption: < 10 W / 15 W
Operating voltage: AC 100 - 240 V, 50/60 Hz (min. AC 90 V, max. AC 265 V)
Luminous flux: 1,080 Lm/1,730 Lm
Lamp type: LED, angle of radiation 120°, light color: daylight, color temperature: 6,500 K
Service life: 60,000 h at +20 °C (+68 °F)
Connection: 2-pole connector with snap lock, AC: max. 2.5 A / AC 240 V, color: white

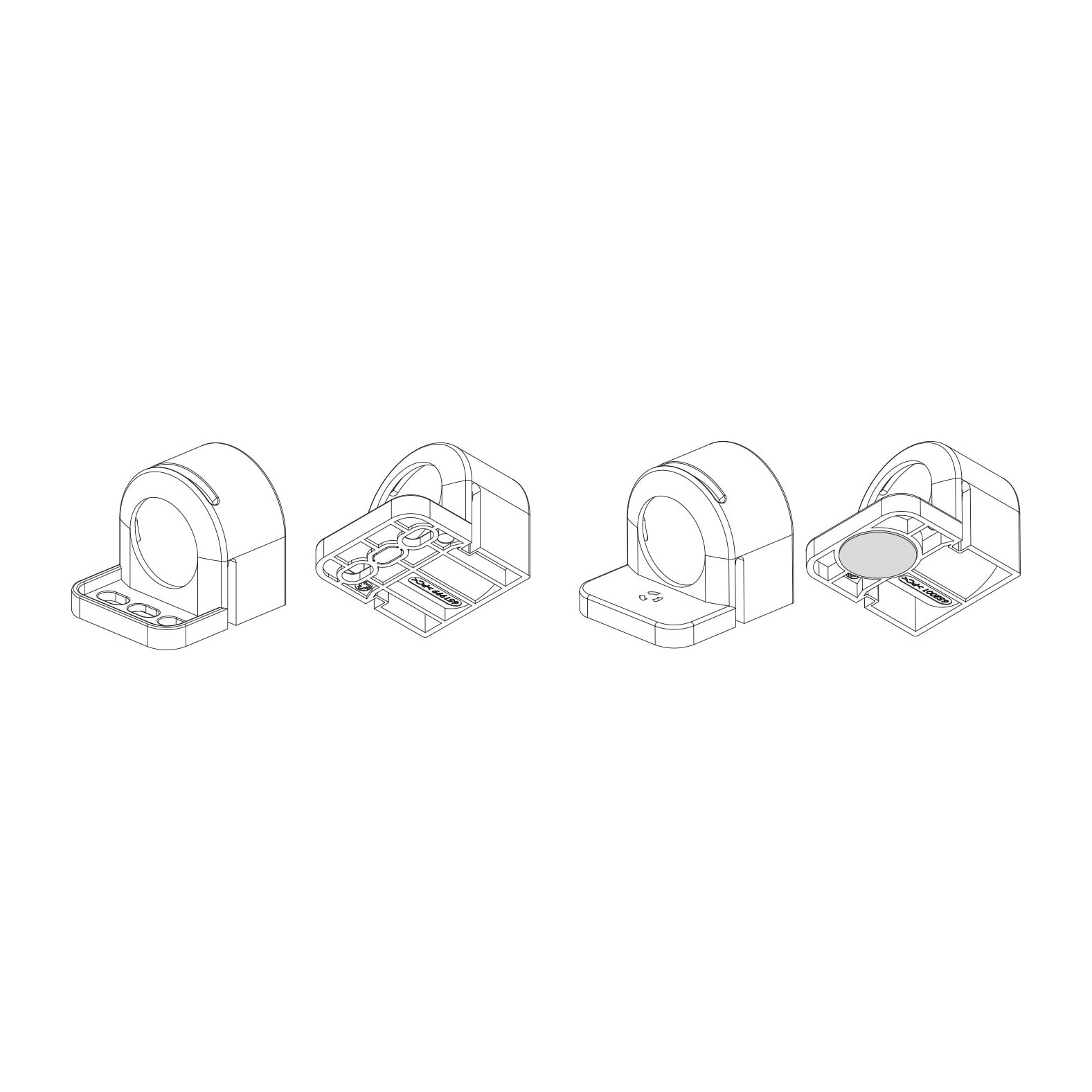

Mounting: magnet fixing or screw fixing (M5), torque 2 Nm max.
Casing: plastic, translucent
Weight: ~ 0.2 kg/0.3 kg
Operating/Storage temperature: -40 to +40 °C (-40 to +104 °F) / -40 to +85 °C (-40 to +185 °F)
Operating/Storage humidity:< 90 % RH (non-condensing)
Protection type/Protection class: IP20 / II (double insulated)
Brand |
STEGO |
|
£119.74
per 1 (ex. VAT)£143.69
per 1 (inc. VAT)
