Part Number: 750-333
Manufacturer Code: 750-333
Multiples of: 1 | Minimum Order: 1
Fieldbus Coupler PROFIBUS DP - 2nd Generation, 12 MBd, light gray
The 750-333 Fieldbus Coupler maps the peripheral data of all the WAGO I/O System's I/O modules on PROFIBUS DP.
When initializing, the coupler determines the node's module structure and creates the process image of all inputs and outputs. Modules with a bit width smaller than eight are grouped in one byte for address space optimization.It is furthermore possible to deactivate I/O modules and to modify the image of the node according to the connected signals without having to modify the existing control application.
The diagnostic concept is based on ID- and channel-related diagnostics according to EN 50170. This does away with the need for programming modules to evaluate manufacturer-specific diagnostic data.

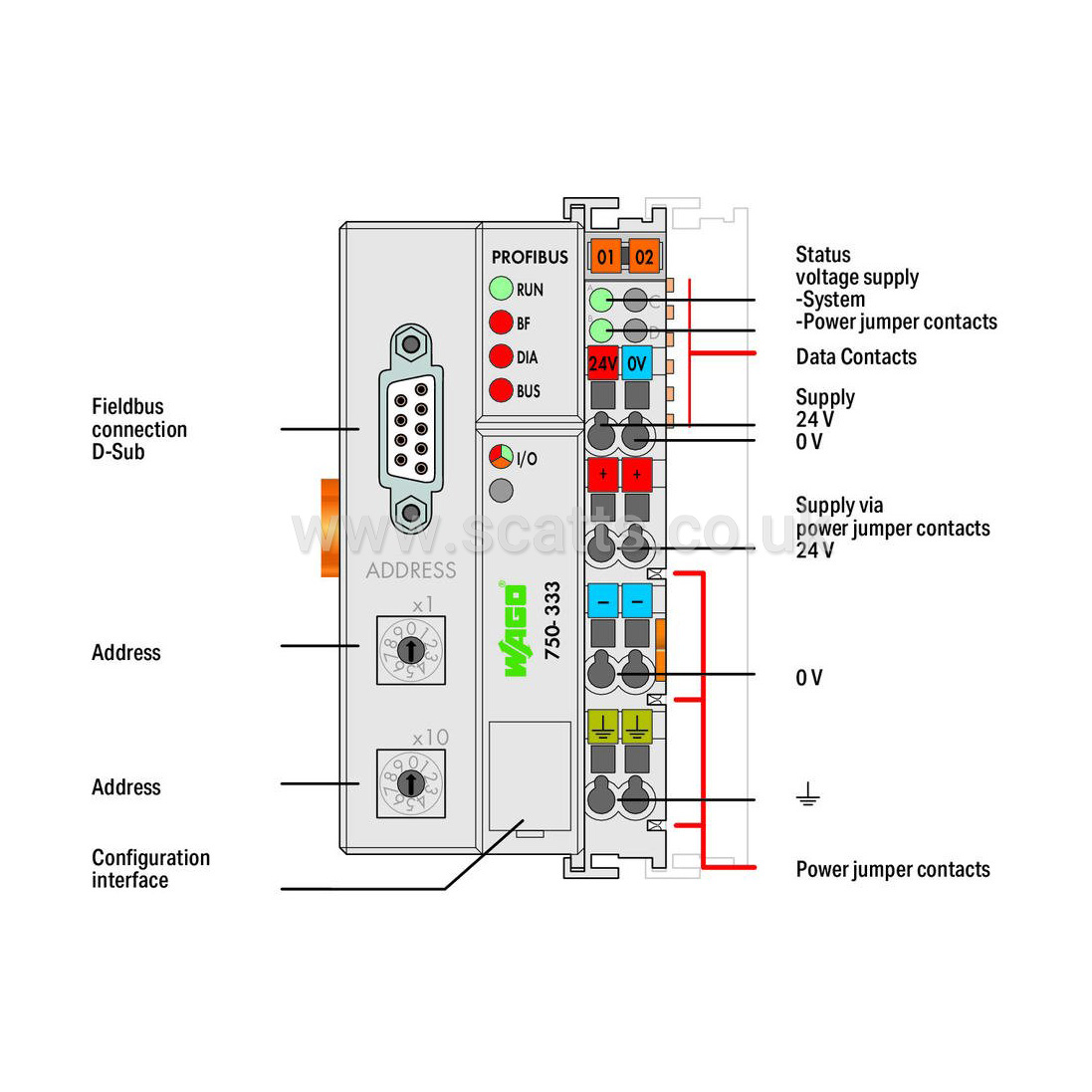

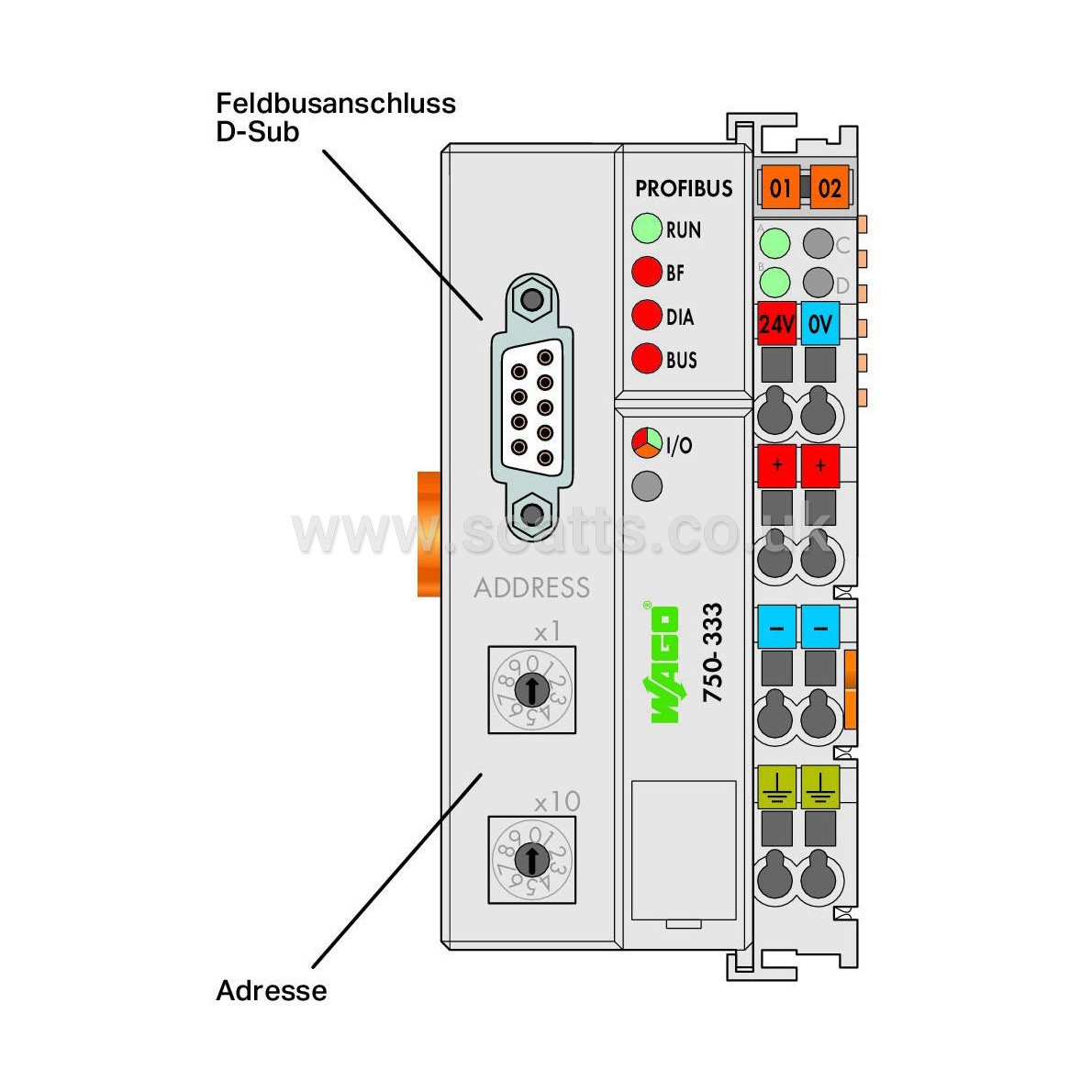

Connection technology: communication/fieldbus: PROFIBUS: 1 x D-Sub 9 socket
Connection technology: field supply: 6 x CAGE CLAMP®
Connection technology: system supply: 2 x CAGE CLAMP®
Connection technology: device configuration: 1 x Male connector; 4-pole
Connection type 1: System/field supply
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Strip length: 8 … 9 mm / 0.31 … 0.35 inches
Width: 50.5 mm / 1.988 inches
Height: 100 mm / 3.937 inches
Depth: 71.1 mm / 2.799 inches
Mounting type: DIN-35 rail
Colour: light gray
Housing material: Polycarbonate; polyamide 6.6
Brand |
WAGO |
|
£328.14
per 1 (ex. VAT)£393.77
per 1 (inc. VAT)
