8CH 24VDC IP LOW SIDE INPUT

8-channel digital input; 24 VDC; 3 ms; Low-side switching


Number of digital inputs: 8
Total number of channels (module): 8
Signal type: Digital
Signal type (voltage): 24 VDC

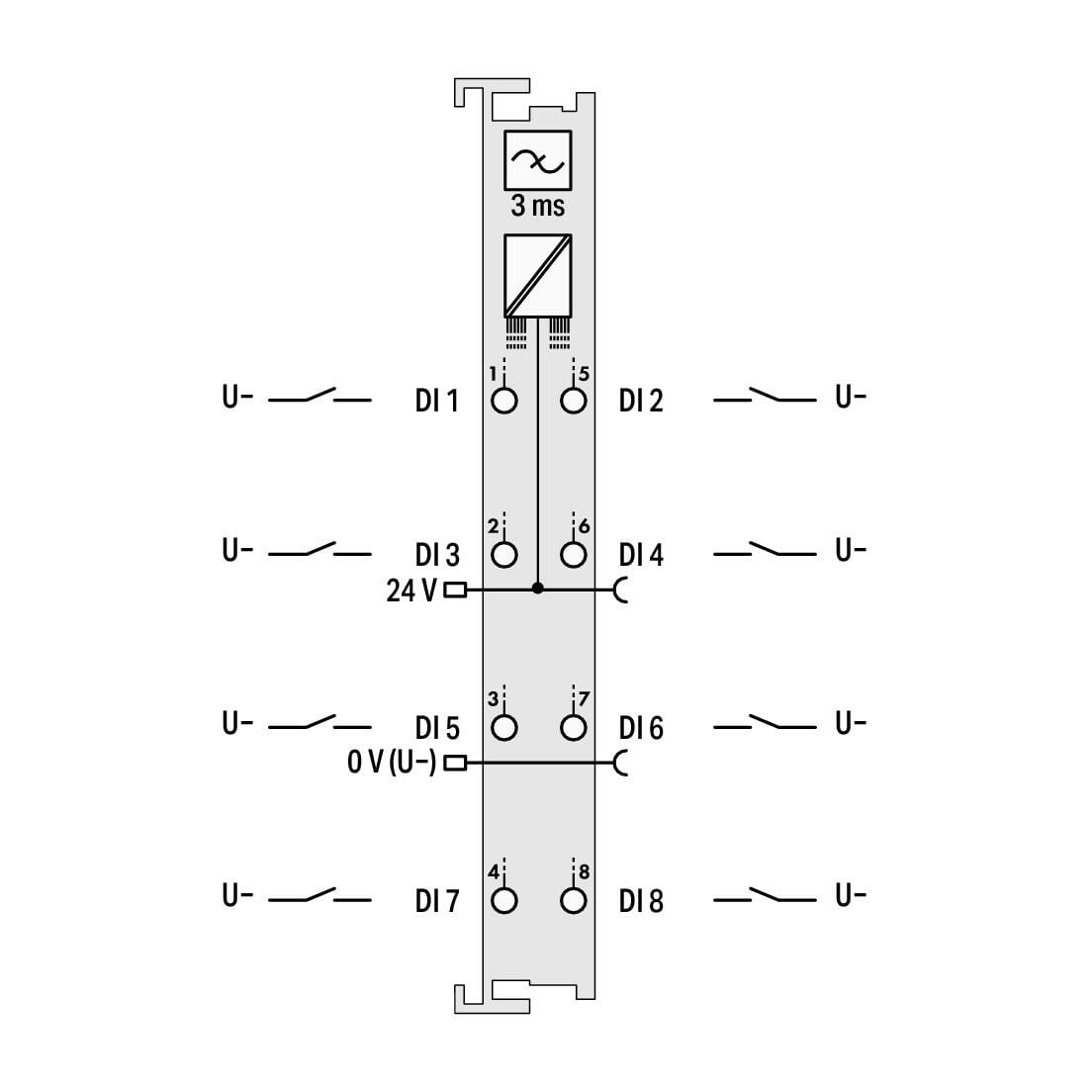

Sensor connection: 8 x (1-wire)
Input characteristic: low-side switching
Input filter: 3ms
Input current per channel for signal (0) typ.: 2.8mA
Voltage range for signal (0): 15 … 30 VDC
Voltage range for signal (1): −3 … +5 VDC
Input data width (internal) max.: 8Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 13mA
Supply voltage (field): 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
Isolation: 500 V system/field

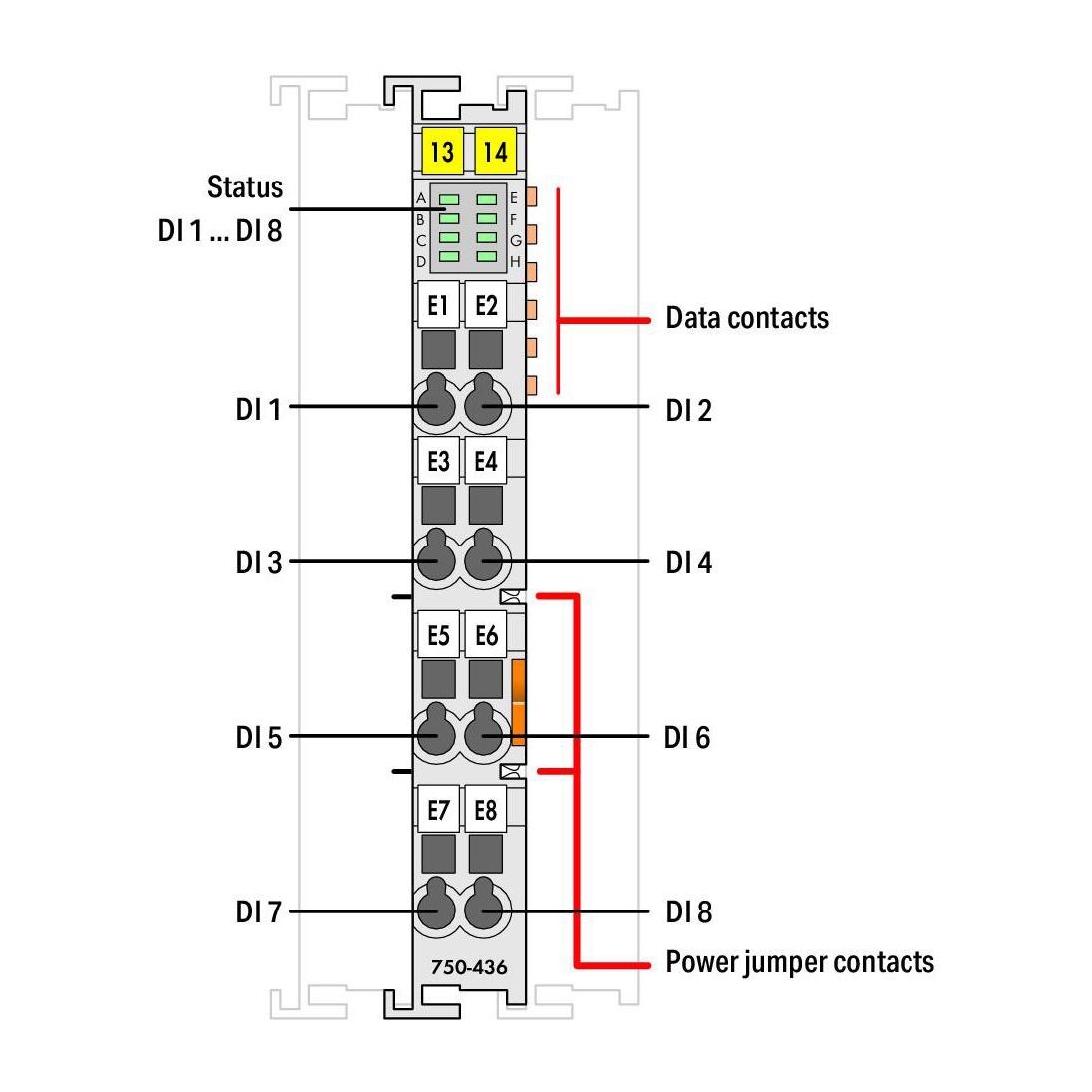

Indicators: LED (A-D) green: Status DI 1, DI 3, DI 5, DI 7; LED (E-H) green: Status DI 2, DI 4, DI 6, DI 8
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 10A
