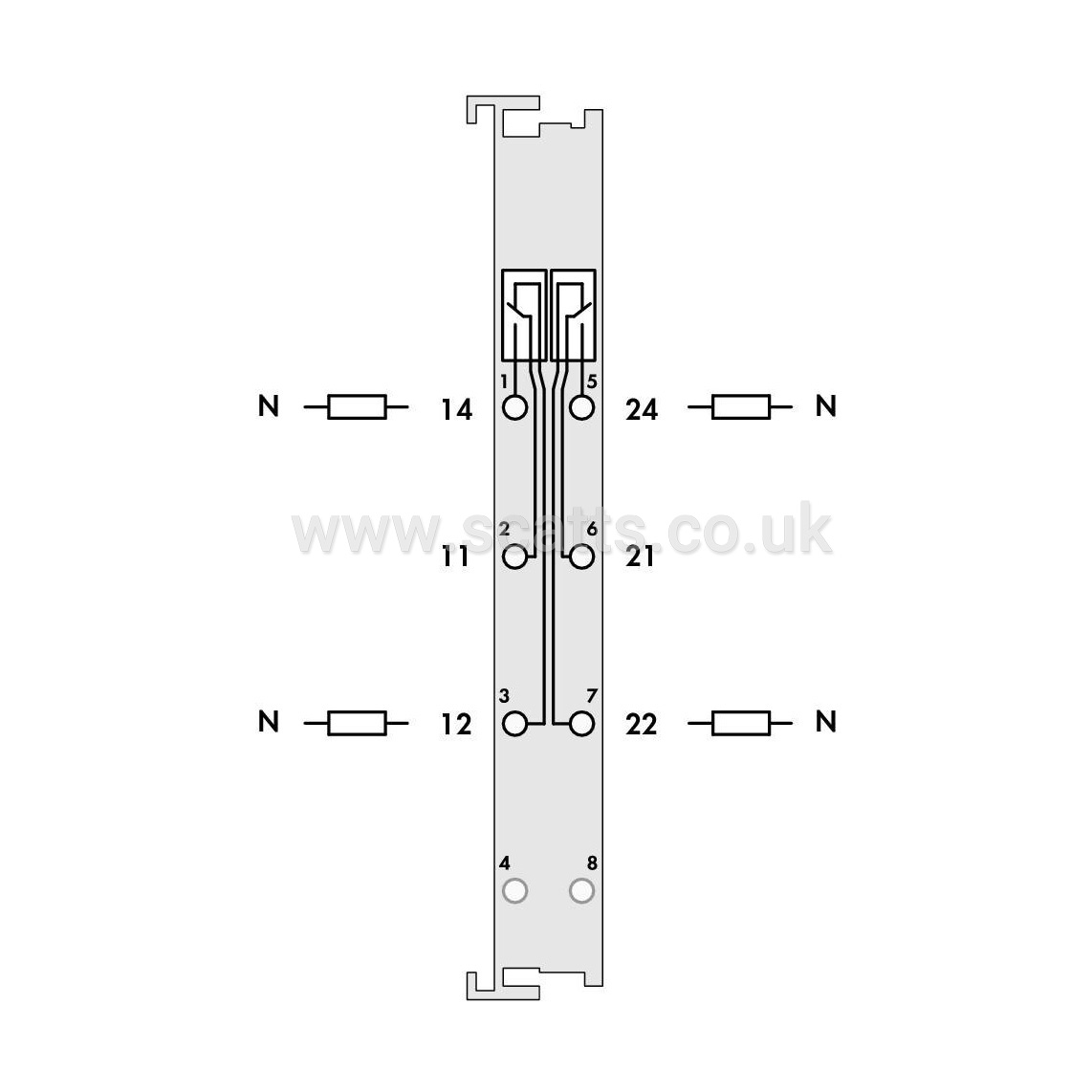

2 CH RELAY OUTPUT 250V AC 1A

2-channel relay output - AC 250 V, 1 A, Potential-free, 2 changeover contacts, light gray


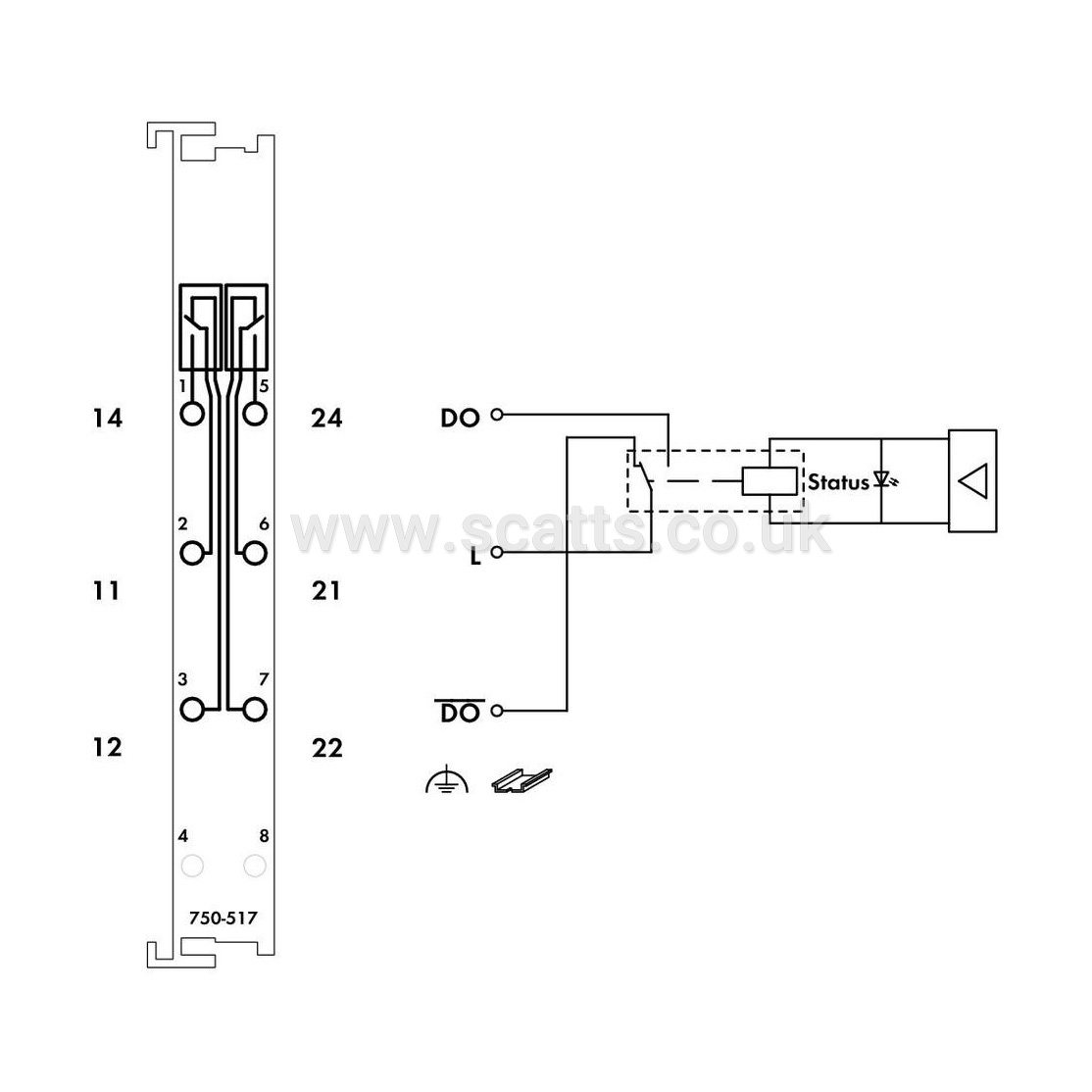

This digital output module transmits control signals from the automation device to the connected actuators. The internal system voltage triggers the relay. The NO contacts are electrically isolated. The state of the relay is shown via LEDs.

Number of digital outputs: 4
Total number of channels (module): 4
Signal type: Digital
Actuator connection: 4 x (1-wire)
Output circuit design: 4 make contacts, Relay
Output characteristic: potential-free
Switching frequency (max.): 0.33 Hz; 3 A / 250 VAC, 30 VDC
Switching frequency (max.) (2): 0.1 Hz; 5 A / 250 VAC, 30 VDC
Switching voltage (max.): 250 VAC; 30 VDC; 110 VDC at 0.4 A
Switching current (max.): 2A
Switching current (note): 5 A for single-channel use
Switching power: 1250 VA / 150 W; cos ϕ max. = 0.4; L/R max. = 7 ms
Pull-in time (max.): 10ms
Drop-out time (max.): 5ms
Bounce time (typ.): 1ms
Electrical switching operations (min.) (at max. resistive load): 100 x 10³ switching operations
Mechanical switching operations (min.) (at max. resistive load): 20 x 10⁶ switching operations
Output data width (internal) max.: 4Bit
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 95mA
Isolation: 1500 V (system/field)

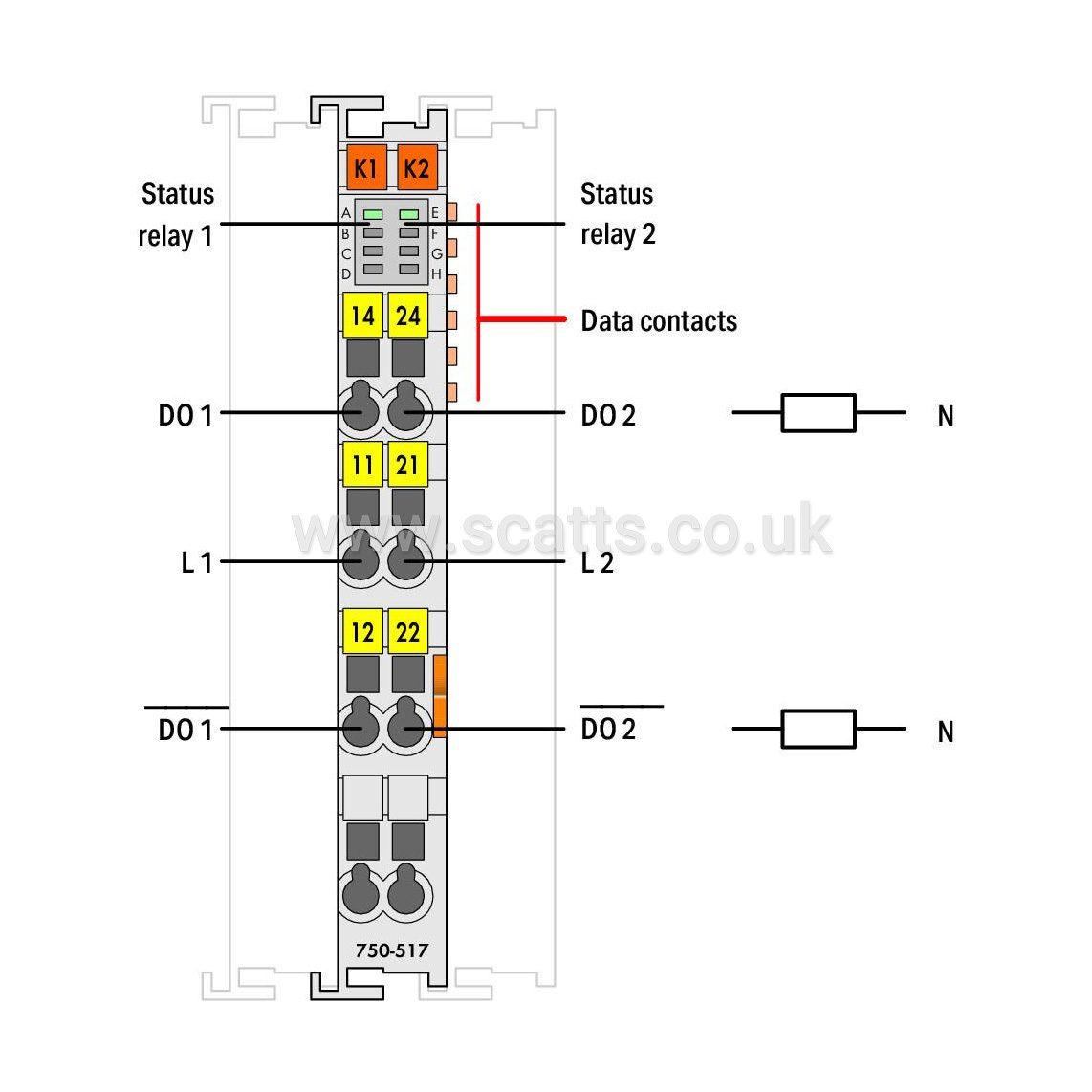

Indicators: LED (A-D) green: Status relay 1 … relay 4
