4 CH 24VDC O/P VALVE IS

4-channel digital output - 24 VDC, Valve, Intrinsically safe


This digital output module controls actuators operating in Zone 0+1 hazardous areas. Intrinsically safe valves can be directly controlled. The WAGO I/O System 750 must be installed either in Zone 2 or in a non-hazardous area. All outputs are electronically short-circuit-protected.

Indicators:

• Green LED (output status)
• Red LED (wire breakage, short circuit)

Field and system levels are electrically isolated.

Number of digital outputs: 4
Total number of channels (module): 4
Signal type: Digital
Signal type: 24 VDC

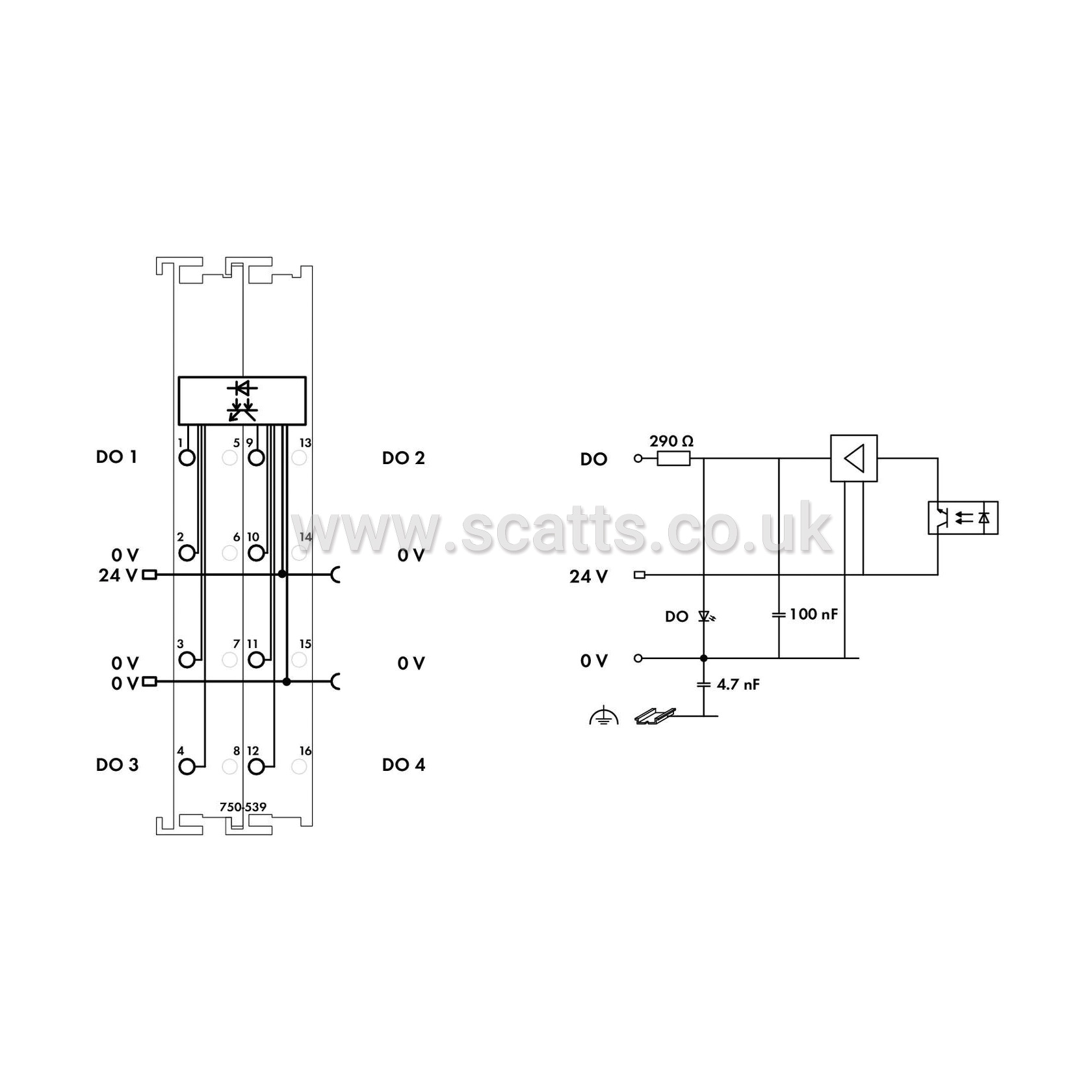

Actuator connection: 4 x (2-wire)
Output characteristic: high-side switching
Switching frequency (max.): 100 Hz
Load type: Resistive, inductive, lamp load
Power consumption Pmax.: 4.86 W (at 47 mA output current)
Input data width (internal) max.: 4Bit
Output data width (internal) max.: 4Bit
Safety: yes
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 20mA
Supply voltage (field): 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 10mA
Isolation: 300 VAC system/supply
Indicators: LED (A, B, E, F) green: Status DO 1 … DO 4; LED (C, D, G, H) red: Diagnostics DO 1 … DO 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Current carrying capacity (power jumper contacts): 1A
Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
