My Part Number:
Part Number: 750-631/000-011
Manufacturer Code: 750-631/000-011
Multiples of: 1 | Minimum Order: 1
Incremental encoder interface; 5 … 24 VDC; Single Interpreter

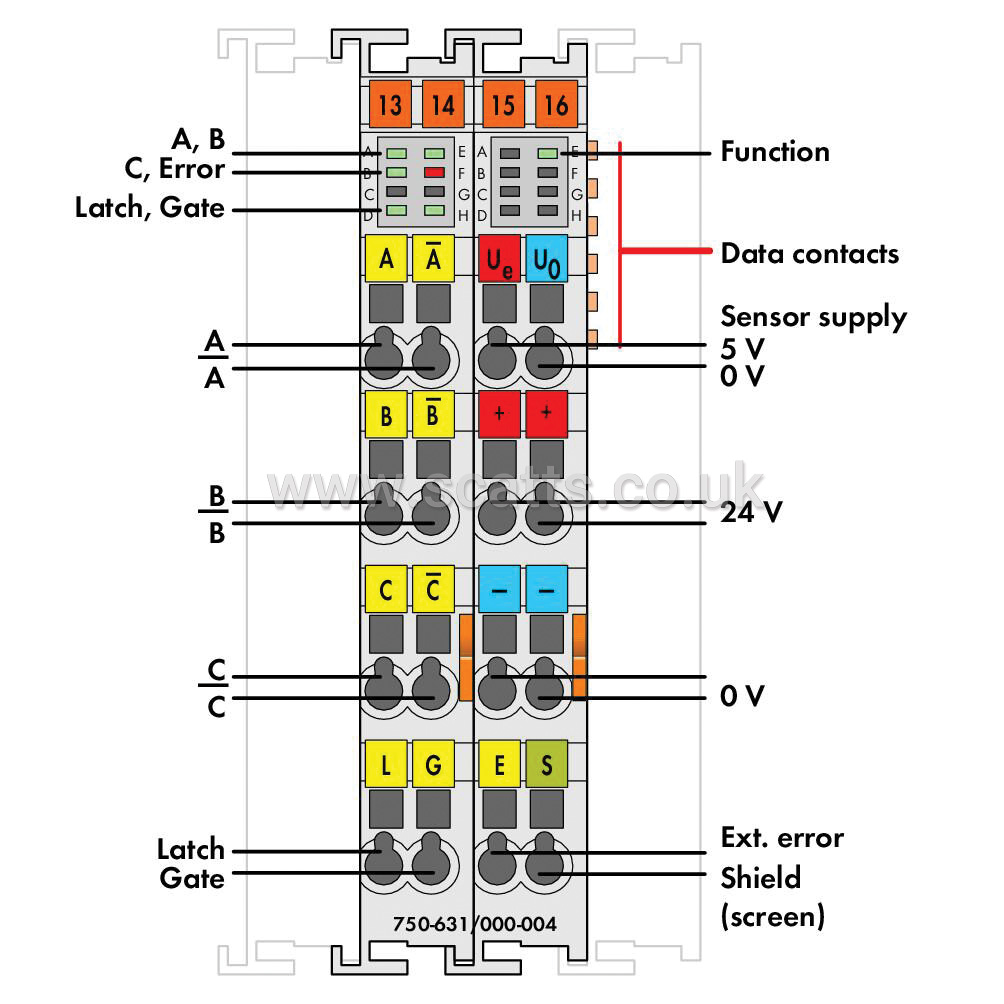

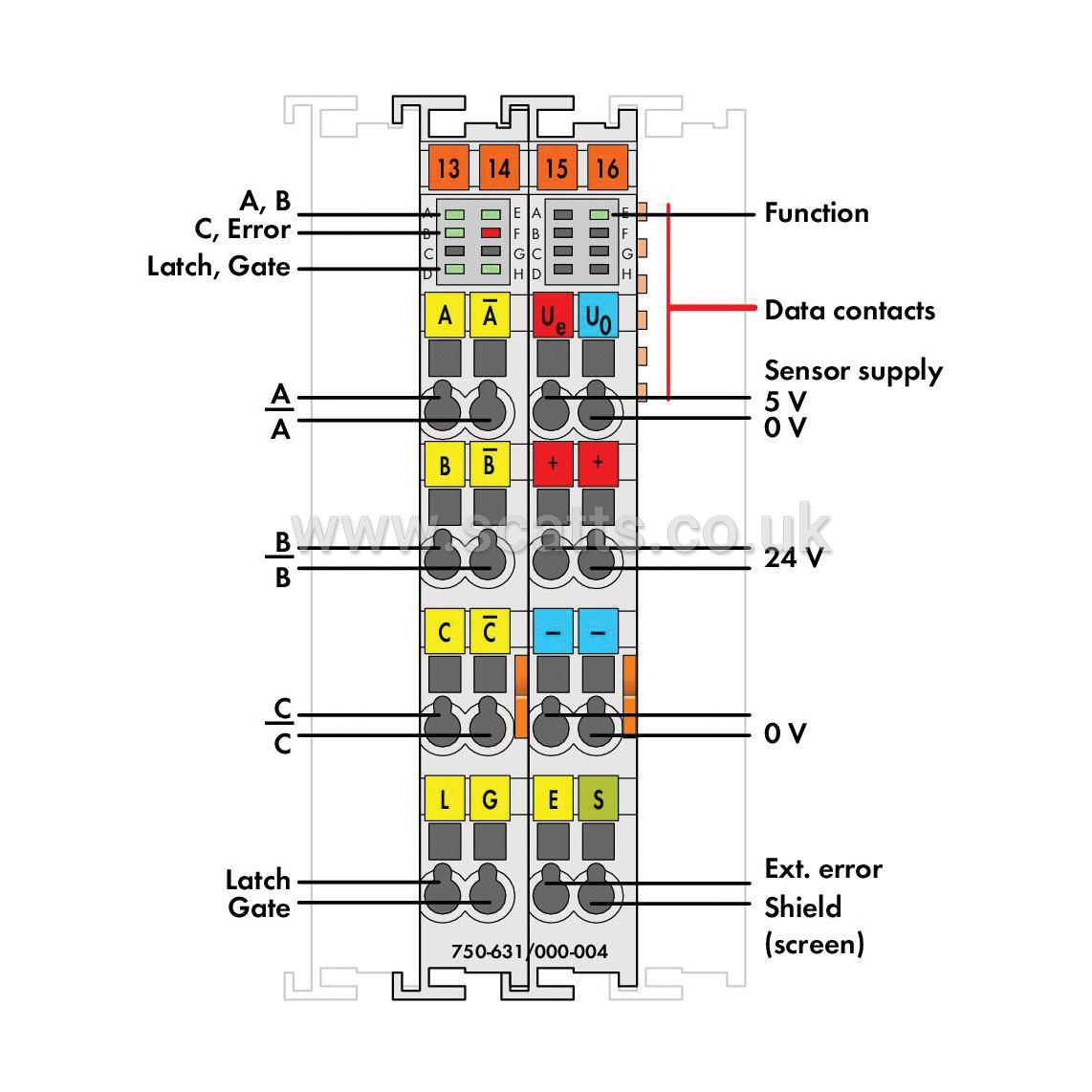

This module is an interface for the connection of any incremental encoder.
A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled. The count of the counter will be transmitted fast and interference-free over the fieldbus to the PC, PLC, or NC.
A counter lock-out is possible using the “Gate” input.

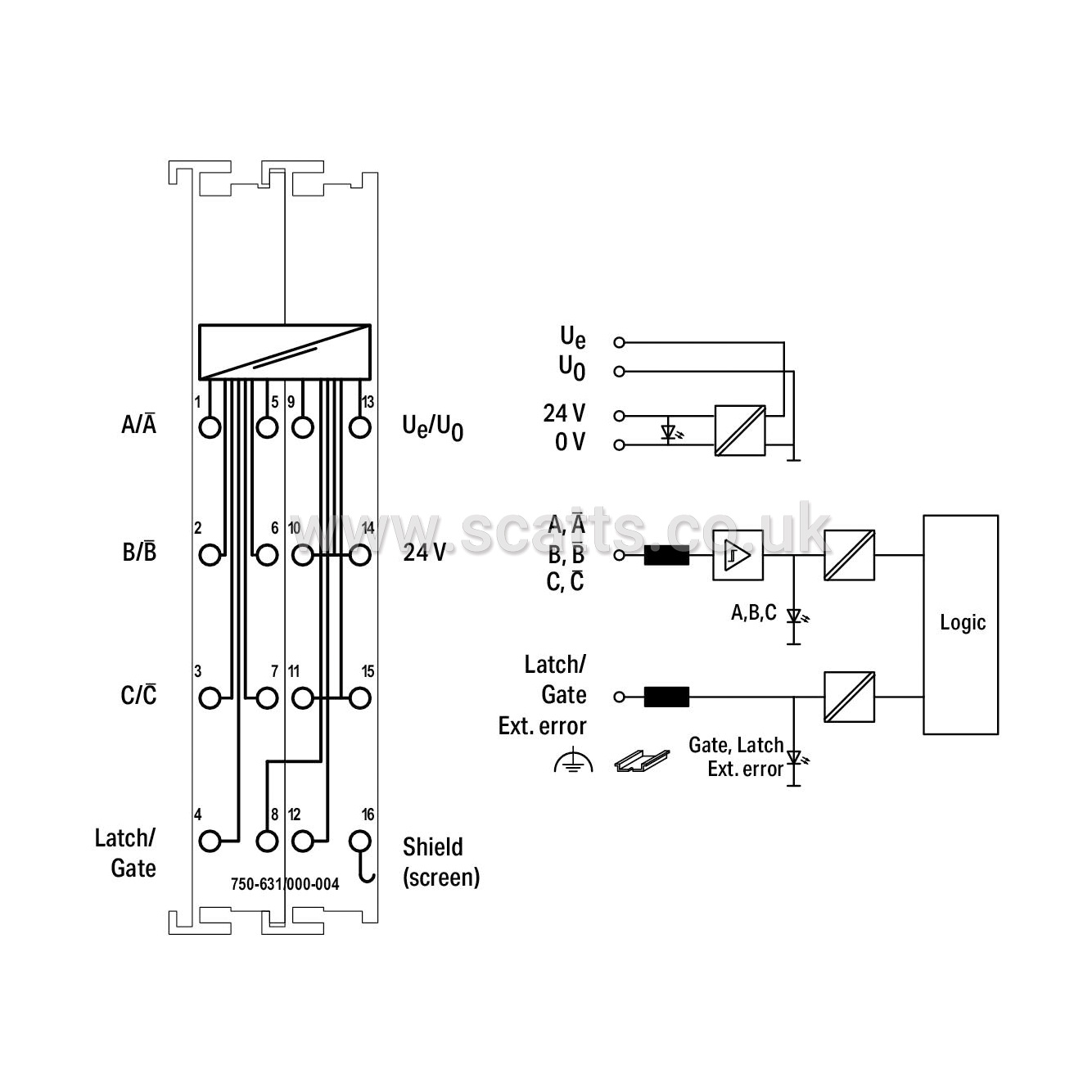

The power supply for the transmitter is derived internally from the power jumper contacts Ue/U0.
The shield directly connects to the DIN-rail.
Brand |
WAGO |
|
£333.90
per 1 (ex. VAT)£400.68
per 1 (inc. VAT)
Incremental encoder interface; 5 … 24 VDC; Single Interpreter
This module is an interface for the connection of any incremental encoder.
A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled. The count of the counter will be transmitted fast and interference-free over the fieldbus to the PC, PLC, or NC.
A counter lock-out is possible using the “Gate” input.
The power supply for the transmitter is derived internally from the power jumper contacts Ue/U0.
The shield directly connects to the DIN-rail.
