2CH UP/DOWN COUNTER 500HZ 16B

2 up/down counter - 16 bits, 500 Hz


This module has two counters that count 24 VDC binary pulses independently of one another. The data is then transmitted to the control via the fieldbus.

The counters can be set or reset with the control bytes. A counter lock-out is also possible.

The control bytes also determine the counting direction.

Number of counters: 2
Counter depth: 16Bit
Input filter: 0.2 ms
Switching frequency (max.): 500 Hz

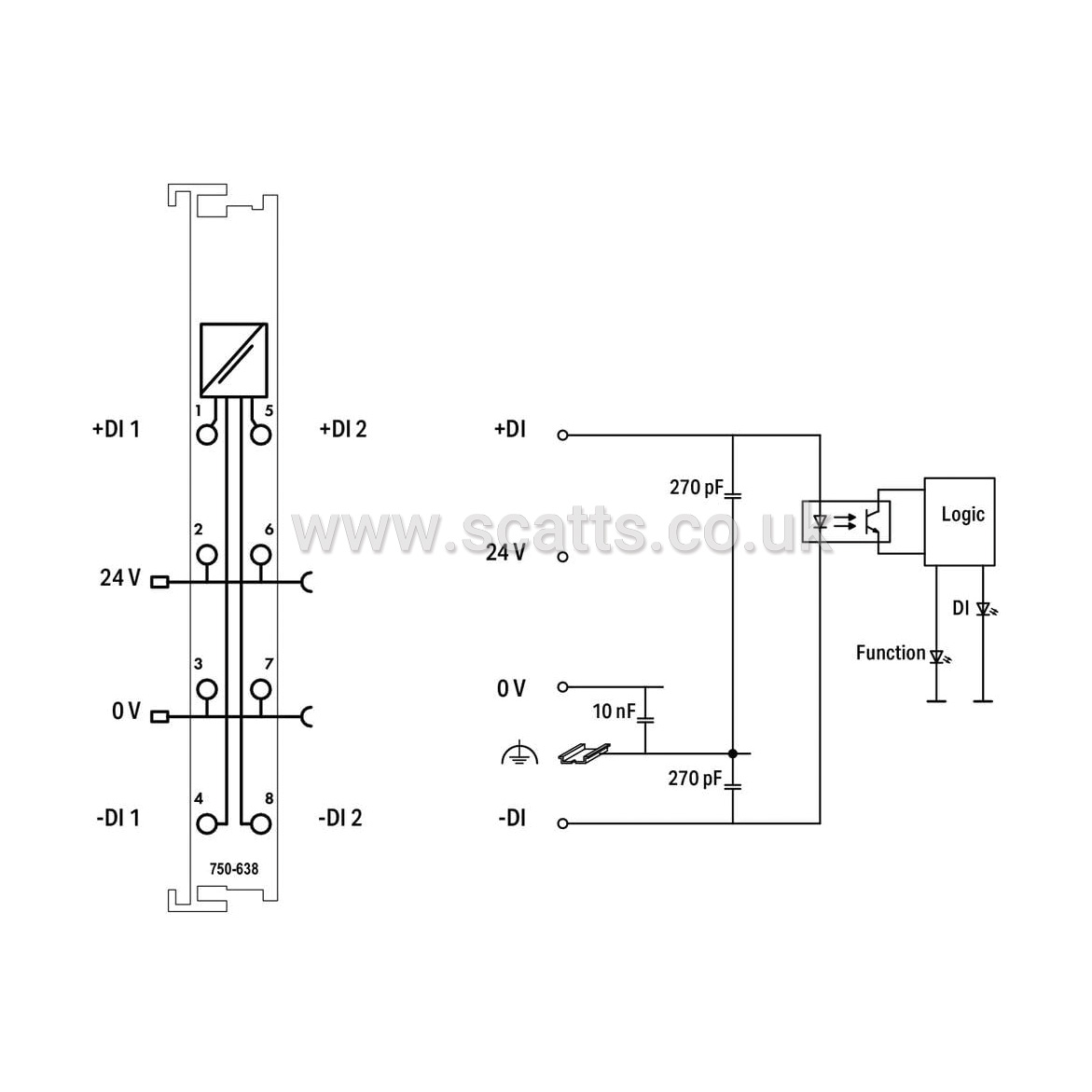

Signal characteristics: Differential
Voltage range for signal (0): −3 … +5 VDC (per EN 61131 Type 1)
Voltage range for signal (1): 15 … 30 VDC (per EN 61131 Type 1)
Minimum pulse width (0, 1): 1ms
Common-mode voltage (max.): 500V
Data width: 2 x 16-bit data; 2 x 8-bit control/status
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 10mA
Supply voltage (field): 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission via spring contact)
Current consumption, field supply (module with no external load): 8mA
Isolation: 500 V system/field
Indicators: LED (A-D) green: Function/Status DI 1, DI 2

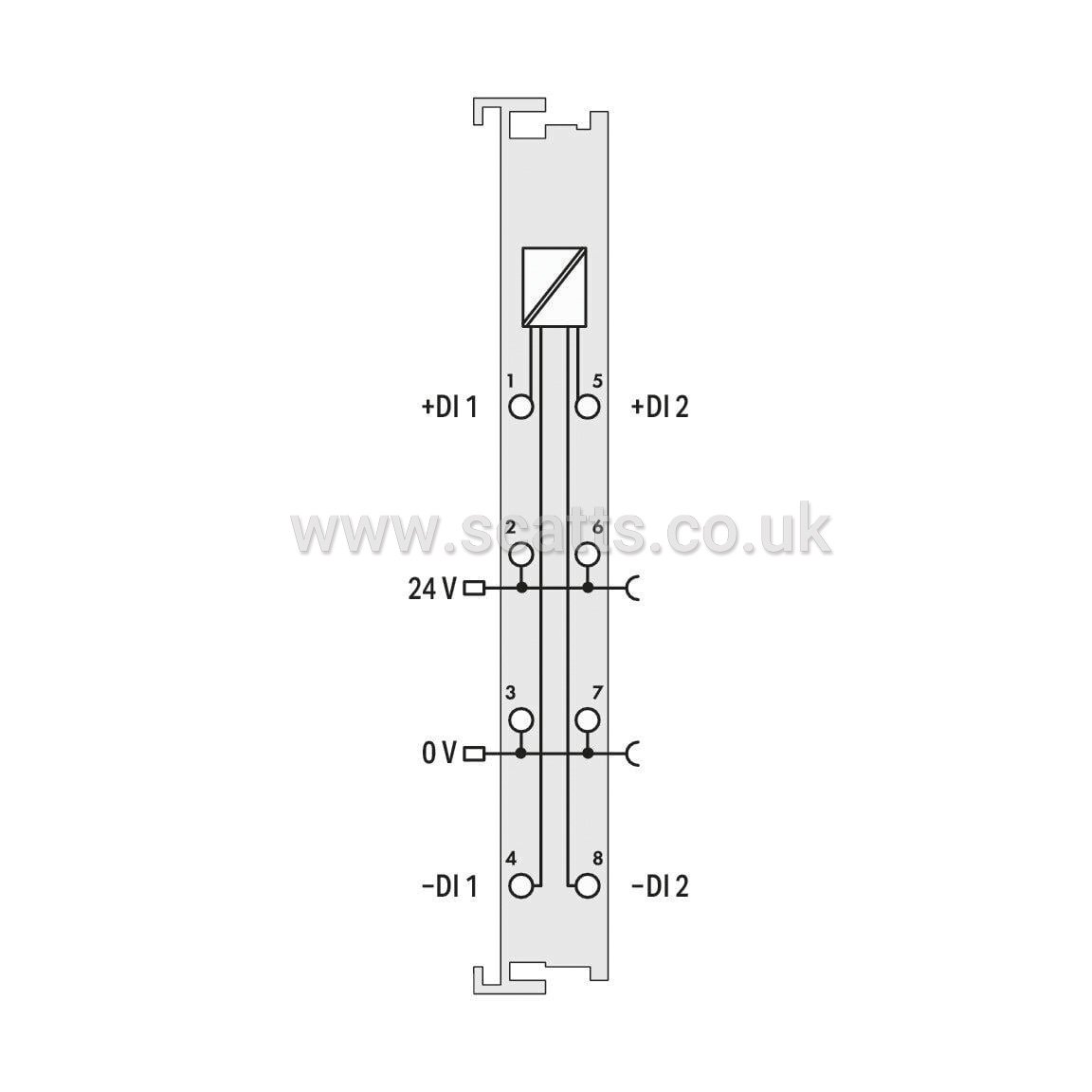

Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
