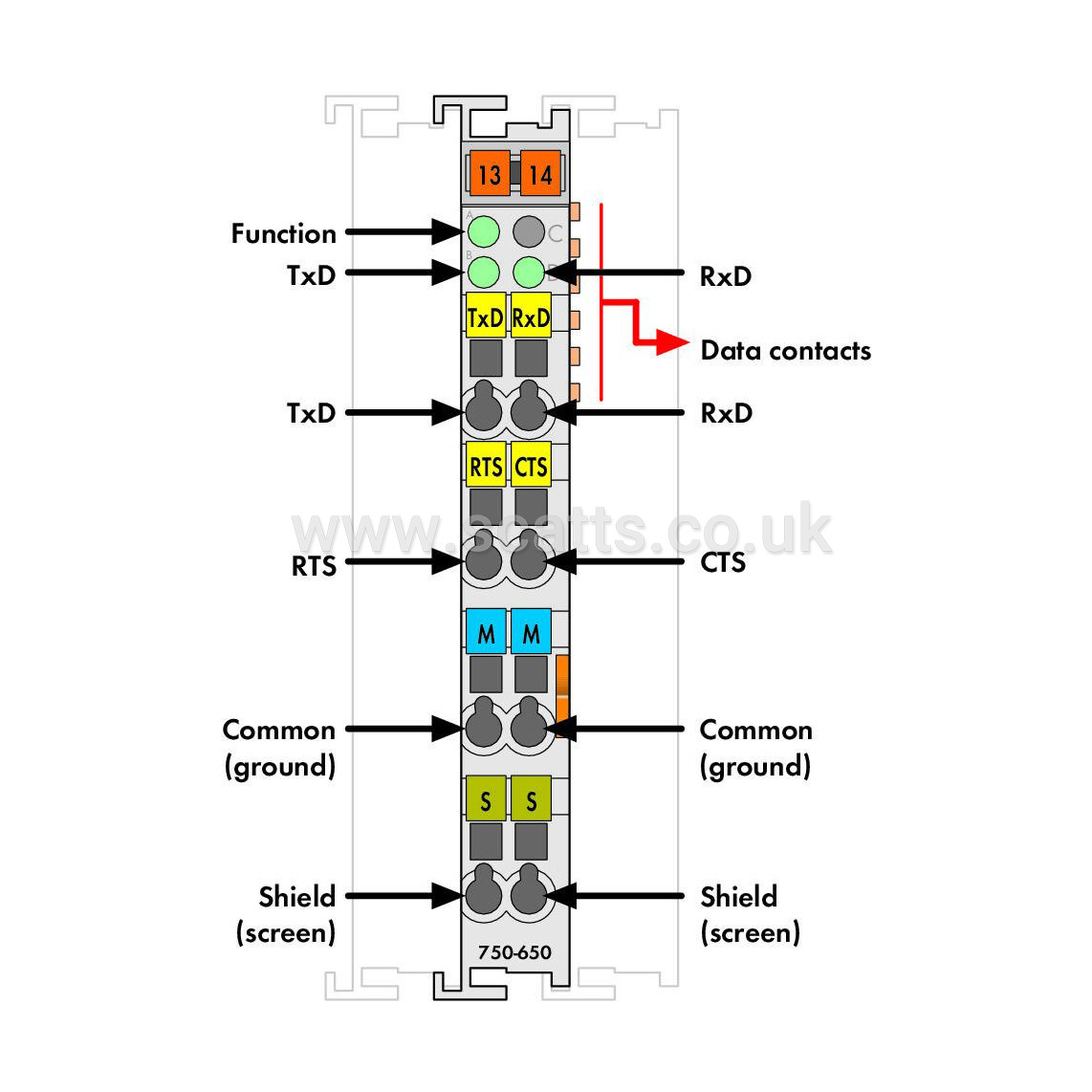

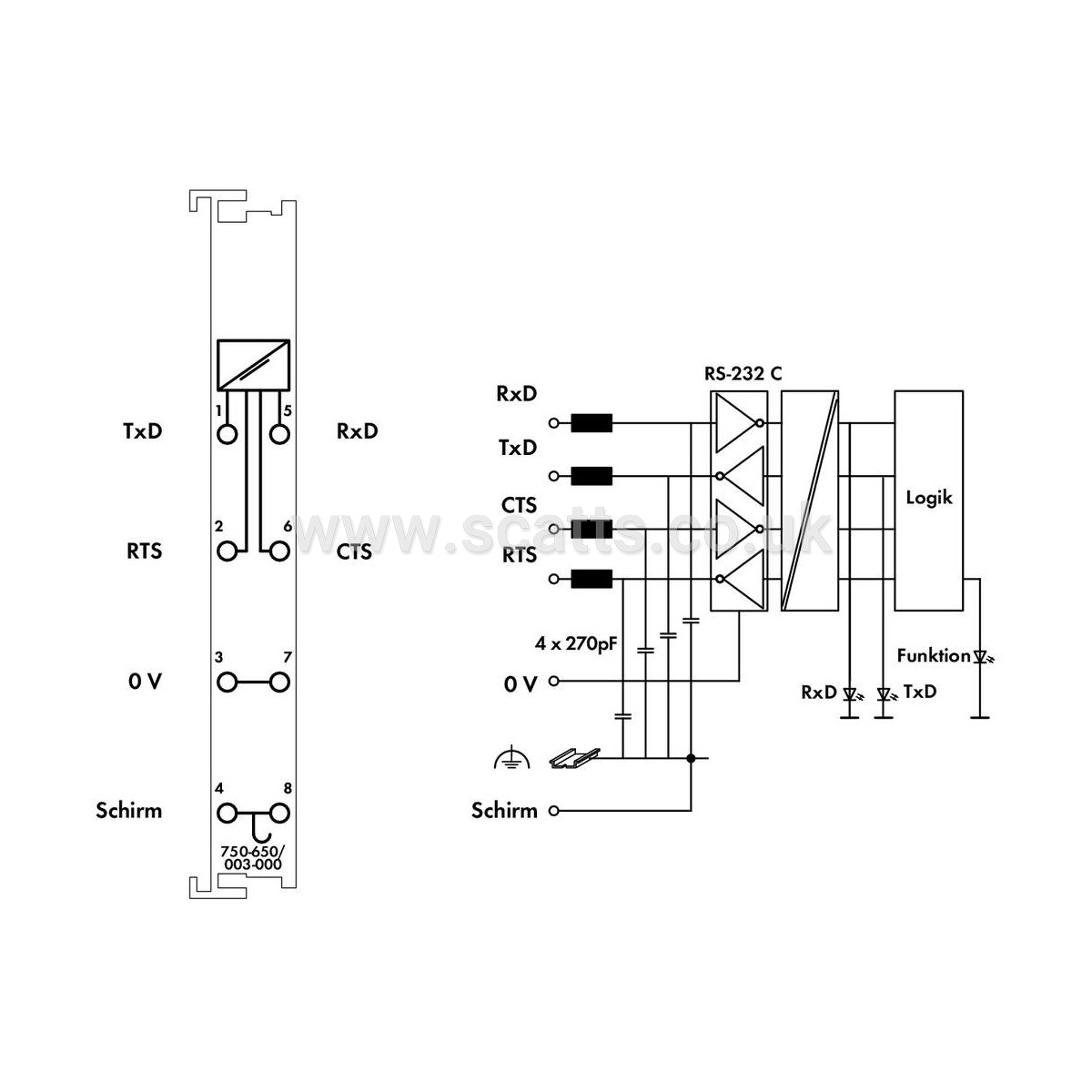

RS-232 C Serial Interface - Adjustable, light gray
The module's built-in interface connects to any device equipped with an RS-232-C serial interface. The interface operates in accordance with the TIA/EIA-F, CCITT V.28/DIN 66259-1 standards.
The connected device communicates directly with the control unit via the fieldbus coupler. The active communication channel works independently of the higher-level fieldbus system and allows full duplex operation up to 57600 baud.
The RS-232 C interface guarantees high interference immunity via electrically isolated signals.

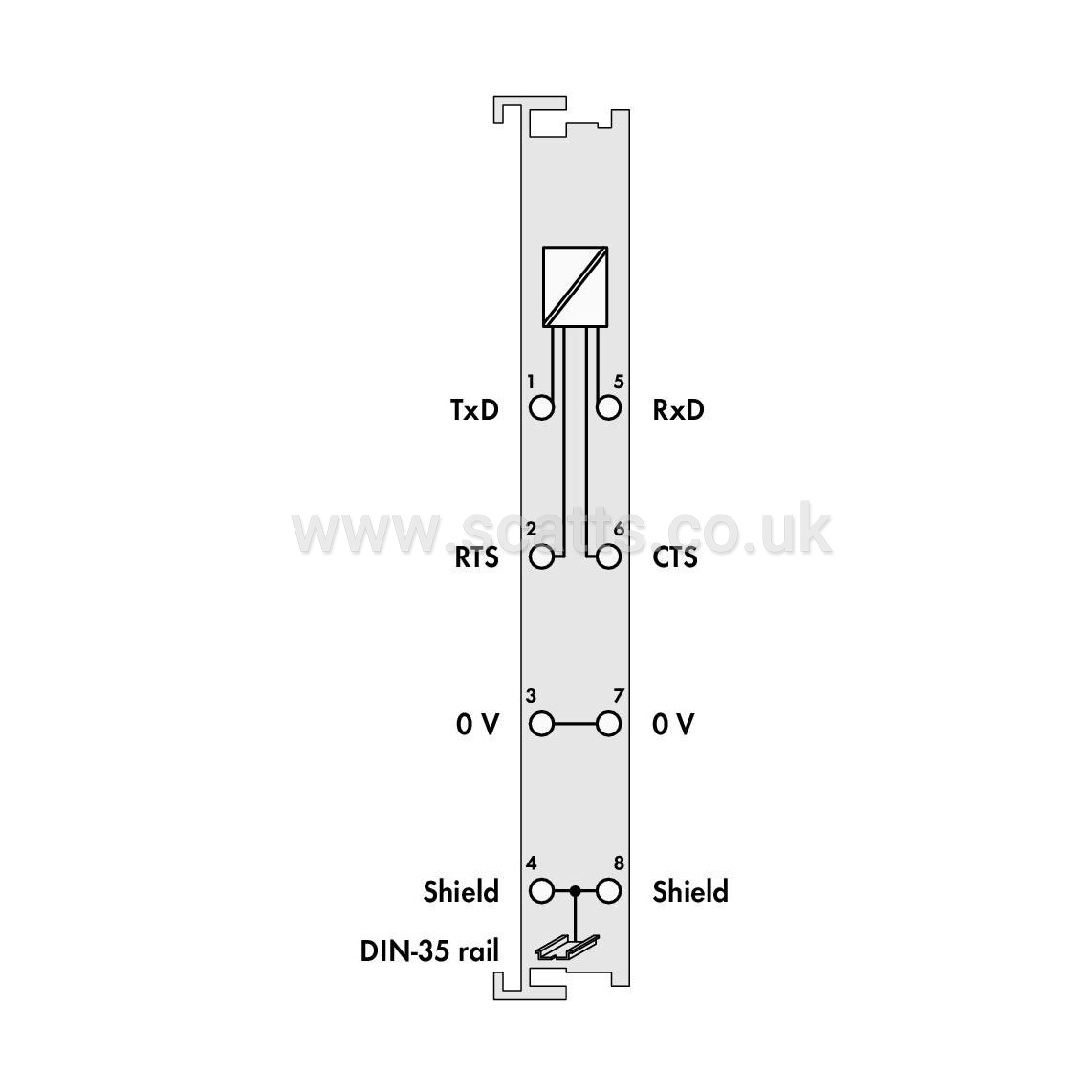

The shield directly connects to the DIN-rail.
Device-specific: Bit skew: < 3 %; RS-232-C line length (max.): 15 m
Signal type: RS-232
Baud rate: 1.2 kBd … 57.6 kBd (9600 baud (default setting))
Transmission channels: 1 TxD / 1 RxD, full-duplex
Data width: 1 x 24-bit input/output (3-byte user data); 1 x 40-bit input/output (5-byte user data); 1 x 8-bit control/status
Parity: None/Even, adjustable
Number of data bits: 7/8, adjustable
Number of stop bits: 1/2, adjustable
Buffer: 120-byte input / 16-byte output
Supply voltage (system): 5 VDC; via data contacts
Current consumption (5 V system supply): 55mA
Isolation: 500 V system/field
Indicators: LED (A, B, D) green: Function, TxD, RxD
