My Part Number:
Part Number: 2702106
Manufacturer Code: AXL F DI16/1 DO16/1 2H
Multiples of: 1 | Minimum Order: 1

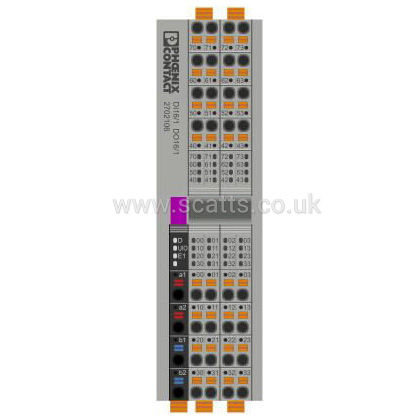

Axioline F, Digital I/O module, including bus base module and Axioline F connectors
16 digital inputs according to EN 61131-2 type 1 and type 3
24 V DC, 2.4 mA
Connection of sensors in single-wire technology
Filter times can be adjusted in three increments: < 100 μs, 1000 μs or 3000 μs
Maximum input frequency: 5 kHz
16 digital outputs
24 V DC, 500 mA
Connection of actuators in single-wire technology
Minimum update time of < 100 μs
Device rating plate stored
Digital inputs: 16 , 24 V DC
Connection method: 1-wire
Digital outputs: 16, 24 V DC, 500 mA
Connection method: 1-wire
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£240.09
per 1 (ex. VAT)£288.11
per 1 (inc. VAT)
