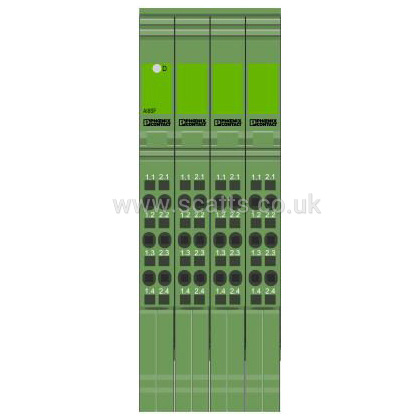

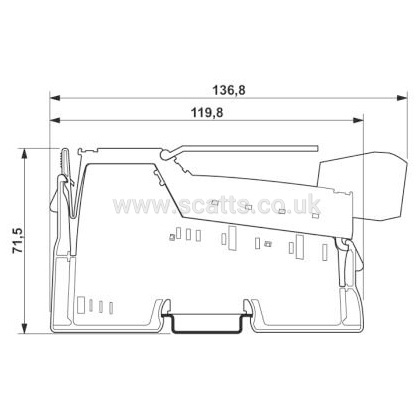

INLINE-8 X ANAL. INPUT MODULE

Inline, Analog input terminal, including Inline connectors and marking fields

The terminal is designed for use within an Inline station.
It is used to acquire analog voltage and current signals.

8 analog single-ended signal inputs for the connection of either voltage or current signals
Connection of sensors in 2-wire technology
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA, 0 mA ... 40 mA, ±40 mA
Voltage ranges: 0 V ... 5 V, ±5 V, 0 V ... 10 V, ±10 V, 0 V ... 25 V, ±25 V, 0 V ... 50 V
Channels are parameterized independently of one another via the bus system
Measured values can be represented in five different formats
16-bit analog/digital converter
Process data multiplex mode
High measuring accuracy

Analog inputs: 8, 0 V ... 5 V, -5 V ... 5 V, 0 V ... 10 V, -10 V ... 10 V, 0 V ... 25 V, -25 V ... 25 V, 0 V ... 50 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA, 0 mA ... 40 mA, -40 mA ... 40 mA
Connection method: 2-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
