My Part Number:
Part Number: 2914563/1M
Manufacturer Code: UM100-PROFIL-100CM / 2914563
Multiples of: 1 | Minimum Order: 1
Panel mounting base
Lateral elements with potential ground contact available from the PCB to the DIN rail (EMC)
Inexpensive as a result of reducing the number of separate housing parts
Flexible size and shape
Fast assembly on standard NS 35 or NS 32 DIN rails
Wide range of options for external conductor connection
High degree of mechanical stability by screwing the lateral elements to the profile
The modules can be marked with Phoenix Contact marking material using the marking grooves in the press-drawn section
Colour: green

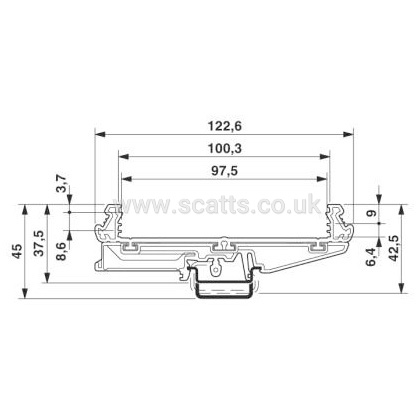

Note: required profile length = PCB length - 3.6 mm
Brand |
PHOENIX CONTACT |
|
£30.20
per 1 (ex. VAT)£36.24
per 1 (inc. VAT)
Panel mounting base
Lateral elements with potential ground contact available from the PCB to the DIN rail (EMC)
Inexpensive as a result of reducing the number of separate housing parts
Flexible size and shape
Fast assembly on standard NS 35 or NS 32 DIN rails
Wide range of options for external conductor connection
High degree of mechanical stability by screwing the lateral elements to the profile
The modules can be marked with Phoenix Contact marking material using the marking grooves in the press-drawn section
Colour: green
Note: required profile length = PCB length - 3.6 mm
