My Part Number:
Part Number: 2700988
Manufacturer Code: AXC 1050
Multiples of: 1 | Minimum Order: 1

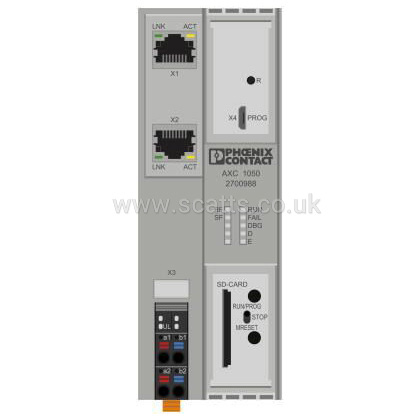

Axio control for direct open-loop control of Axioline I/Os. With 2 Ethernet interfaces and programming capabilities according to IEC 61131-3. Complete with connector and labeling field.
PROFINET controller (up to 16 devices) and/or PROFINET device
Modbus/TCP-Client
Numerous protocols supported such as: http, https, FTP, SNTP, SNMP, SMTP, SQL, MySQL, DCP, etc.
Free engineering with PC Worx Express (IEC 61131-3)
Up to 63 AXIO I/O modules can be mounted side by side
Integrated UPS for targeted shutdown of the application
Configuration via USB
Web server HTML5 and JAVA
SD card up to 2 GB as optional plug-in parameterization memory
2 x Ethernet interfaces (integrated switch)
Increased resistance to EMI
Extended temperature range of -25°C ... +60°C
Brand |
PHOENIX CONTACT |
|
£456.76
per 1 (ex. VAT)£548.11
per 1 (inc. VAT)
