My Part Number:
Part Number: 2702230
Manufacturer Code: IL CO BK-PAC
Multiples of: 1 | Minimum Order: 1

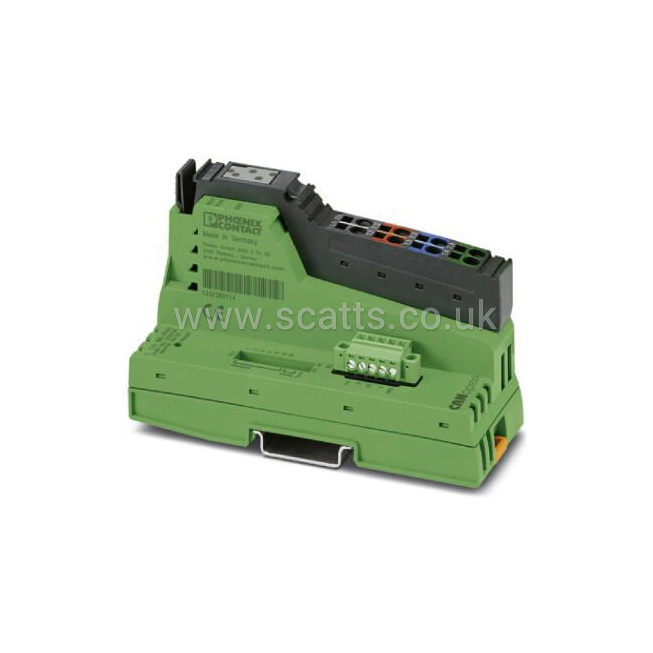

Inline, Bus coupler, CANopen®, MINI COMBICON, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including network connector, Inline connector, and marking field
Automatic detection of the baud rate in the CANopen® network
Programmable modes for behavior in the event of an error
Emergency messages
Integrated termination resistor can be switched on or off via DIP switch
Supports two SDO servers simultaneously
Trigger modes: event, timer, remote request
Node and life guarding
Heartbeat

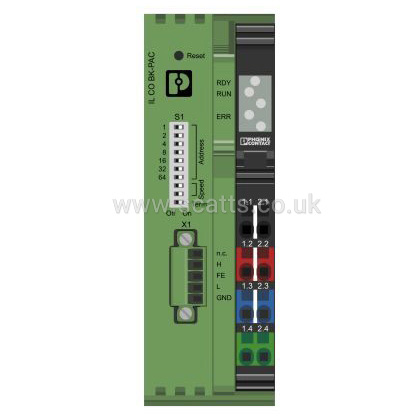

Connection to CANopen® with 5-pos. MINI COMBICON connector
Brand |
PHOENIX CONTACT |
|
£272.30
per 1 (ex. VAT)£326.76
per 1 (inc. VAT)
Inline, Bus coupler, CANopen®, MINI COMBICON, transmission speed in the local bus: 500 kbps / 2 Mbps, degree of protection: IP20, including network connector, Inline connector, and marking field
Automatic detection of the baud rate in the CANopen® network
Programmable modes for behavior in the event of an error
Emergency messages
Integrated termination resistor can be switched on or off via DIP switch
Supports two SDO servers simultaneously
Trigger modes: event, timer, remote request
Node and life guarding
Heartbeat
Connection to CANopen® with 5-pos. MINI COMBICON connector
Brand |
PHOENIX CONTACT |
|
