My Part Number:
Part Number: 2861302
Manufacturer Code: IB IL AI 2/SF-PAC
Multiples of: 1 | Minimum Order: 1

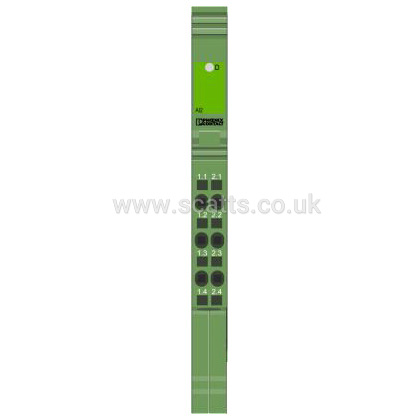

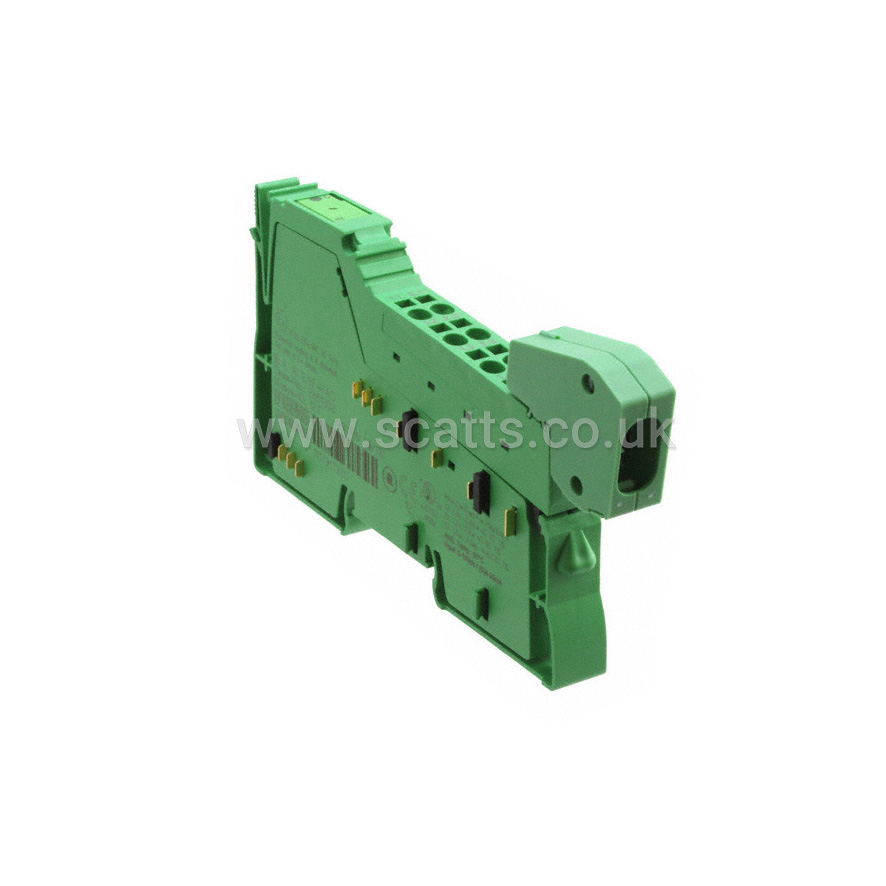

Inline, Analog input terminal, including Inline connector and labeling field
The terminal is designed for use within an Inline station.
It is used to acquire analog voltage and current signals.
2 analog single-ended signal inputs for the connection of either voltage or current signals
Connection of sensors in 2-wire technology
Current ranges: 0 mA ... 20 mA, 4 mA ... 20 mA, ±20 mA
Voltage ranges: 0 V ... 10 V, ±10 V
Channels are parameterized independently of one another via the bus system
Measured values can be represented in four different formats
Resolution depends on the representation format and the measuring range
Process data update of both channels within a max. of 1.5 ms
Analog inputs: 2, 0 V ... 10 V, -10 V ... 10 V, 0 mA ... 20 mA, 4 mA ... 20 mA, -20 mA ... 20 mA
Connection method: 2-wire
Transmission speed in the local bus: 500 kbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£287.33
per 1 (ex. VAT)£344.80
per 1 (inc. VAT)
