My Part Number:
Part Number: 2688459
Manufacturer Code: AXL F BK ETH
Multiples of: 1 | Minimum Order: 1

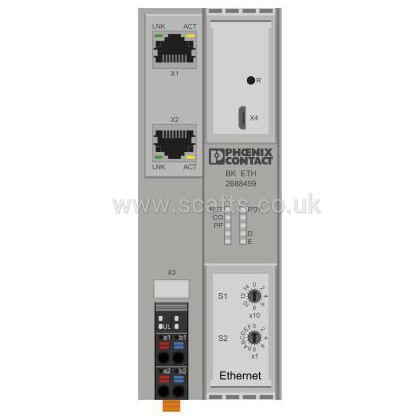

Axioline F, Bus coupler, Modbus/TCP(UDP), RJ45 socket, including bus base module and Axioline F connector
2 Ethernet ports (with integrated switch)
Transmission speed of 10 Mbps and 100 Mbps
Rotary coding switches for setting the IP address assignment and other functions
Modbus/TCP (UDP) support
BootP and DHCP
Firmware can be updated
Runtime in the bus coupler is negligible (almost 0 μs) (for Modbus/UDP)
Typical cycle time of the Axioline F local bus is around 10 μs
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£434.08
per 1 (ex. VAT)£520.90
per 1 (inc. VAT)
Axioline F, Bus coupler, Modbus/TCP(UDP), RJ45 socket, including bus base module and Axioline F connector
2 Ethernet ports (with integrated switch)
Transmission speed of 10 Mbps and 100 Mbps
Rotary coding switches for setting the IP address assignment and other functions
Modbus/TCP (UDP) support
BootP and DHCP
Firmware can be updated
Runtime in the bus coupler is negligible (almost 0 μs) (for Modbus/UDP)
Typical cycle time of the Axioline F local bus is around 10 μs
Transmission speed in the local bus: 100 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
