My Part Number:
Part Number: 2692322
Manufacturer Code: IL PB BK DI8 DO4/EF-PAC
Multiples of: 1 | Minimum Order: 1

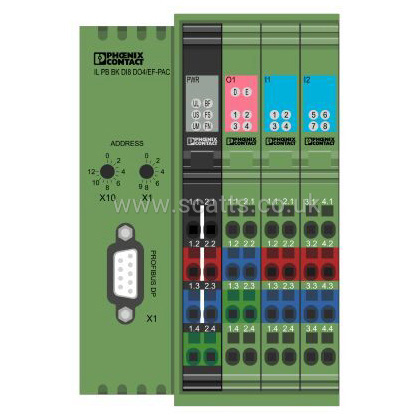

Inline, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, including Inline connectors and marking fields
PROFIBUS connection via 9-pos. D-SUB socket
Electrical isolation between PROFIBUS interface and logic
8 digital inputs, 4 digital outputs onboard
Connection of a maximum of 16 PCP devices
DP/V1 for class 1 and class 2 masters
PROFIBUS data transmission speed of 9.6 kbps to 12 Mbps
Rotary coding switches for setting the PROFIBUS address
Supported PROFIBUS addresses from 0 to 126
I&M functions
IO-Link call (firmware 2.0 or later)
Operation of PROFIsafe devices
Digital inputs: 8 , 24 V DC
Connection method: 3-wire
Digital outputs: 24 V DC, 500 mA
Connection method: 3-wire
Transmission speed in the local bus: 500 kbps / 2 Mbps
Degree of protection: IP20
Brand |
PHOENIX CONTACT |
|
£427.56
per 1 (ex. VAT)£513.07
per 1 (inc. VAT)
